Hartzell 72” C2YR-1BFP/F7497 Delivered

Our PROP was delivered today!!!!!  So, citing!!!!!

We ordered a 72” (recommended for tailwheel RV’s) Hartzell Constant Speed Propeller:  C2YR-1BFP/F7497-2 which will be installed on a Lycoming IO-390 (210 hp) engine.  According to the Hartzell Propeller order form on the Van’s website, this is the only prop available for the RV-14 (several other options for the RV-14A though).

Here it is right off the UPS truck!  The little box on top contained the Owner’s Manual (pictured at the bottom of the post) and some documentation.  There was no damage to the shipping box and it seemed pretty well protected.

I will take the prop completely out of the box in the next few days to make sure there was no damage during shipping (should be fine, but I’ll check anyway).  In the mean time, we removed the banding straps and opened the box to review the prop hub.....

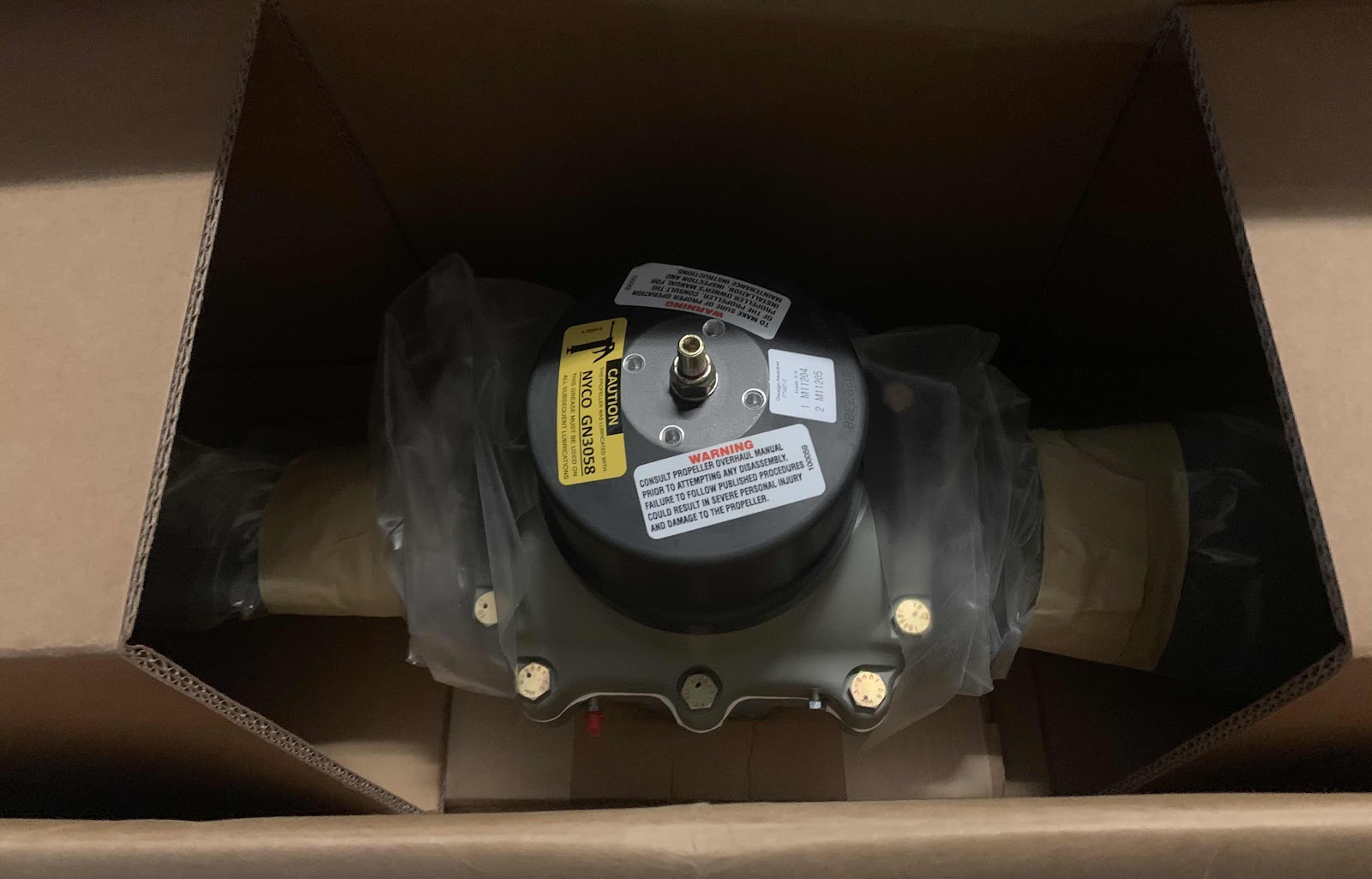

.....one of the blade tips.....

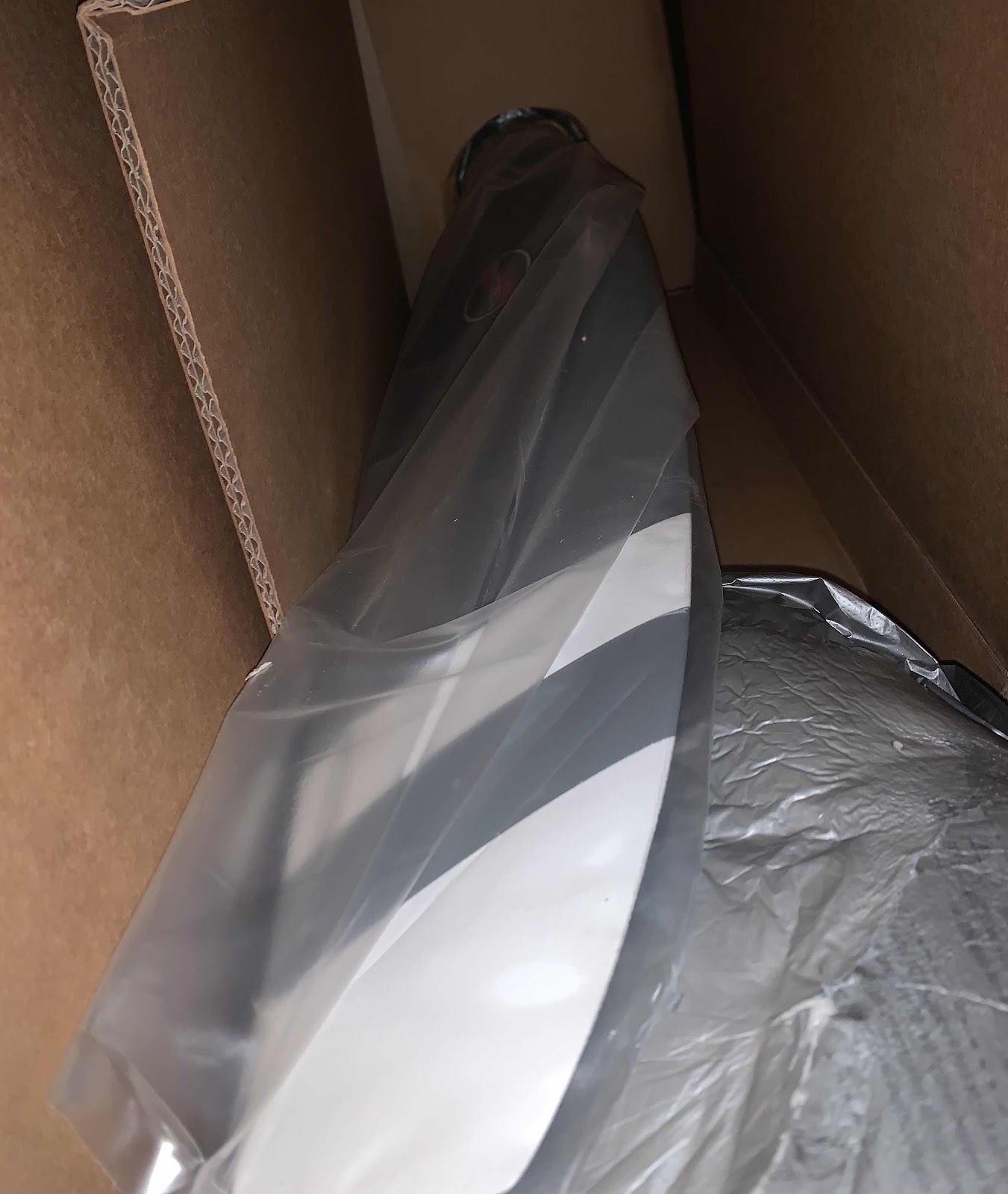

.....and one of the blades.

Here is the Owner’s Manual that came with the propeller.

The engine was ordered prior to the Lycoming price increase and should be delivered around the end of March/first of April.  Until then, the prop is all by itself.

The work sessions/posts regarding the installation of the propeller will be covered in Section 44, Spinner & Propeller

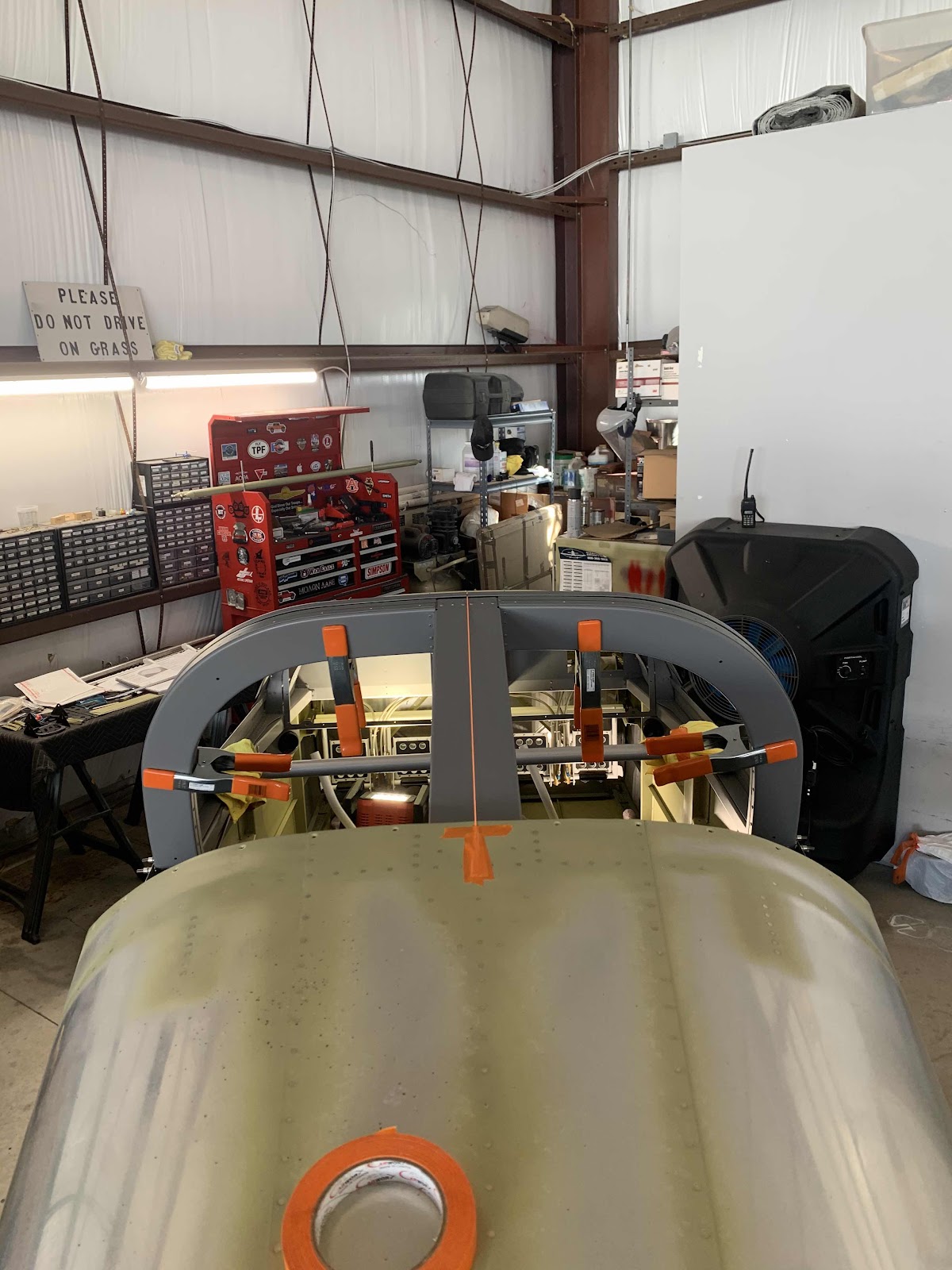

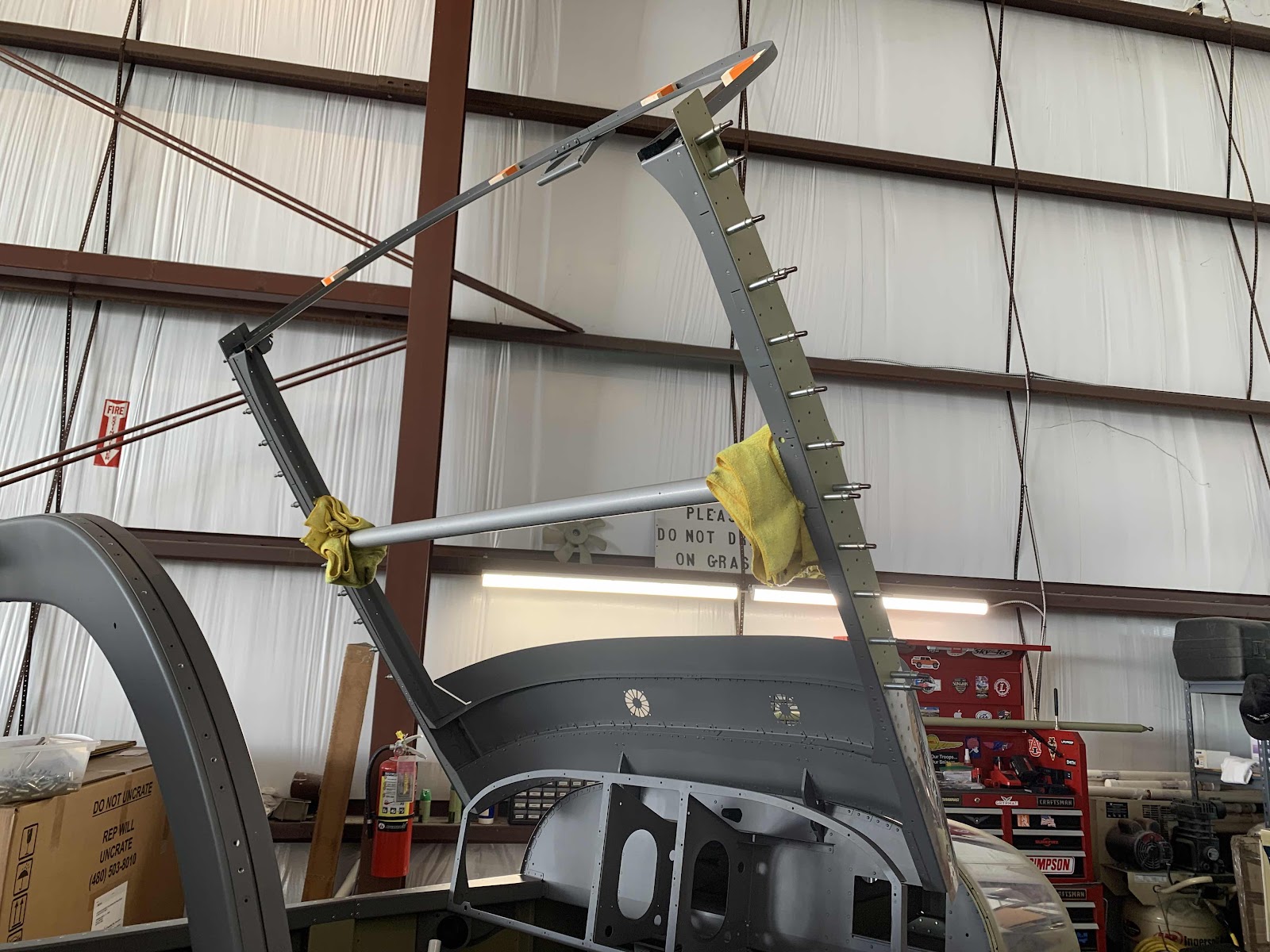

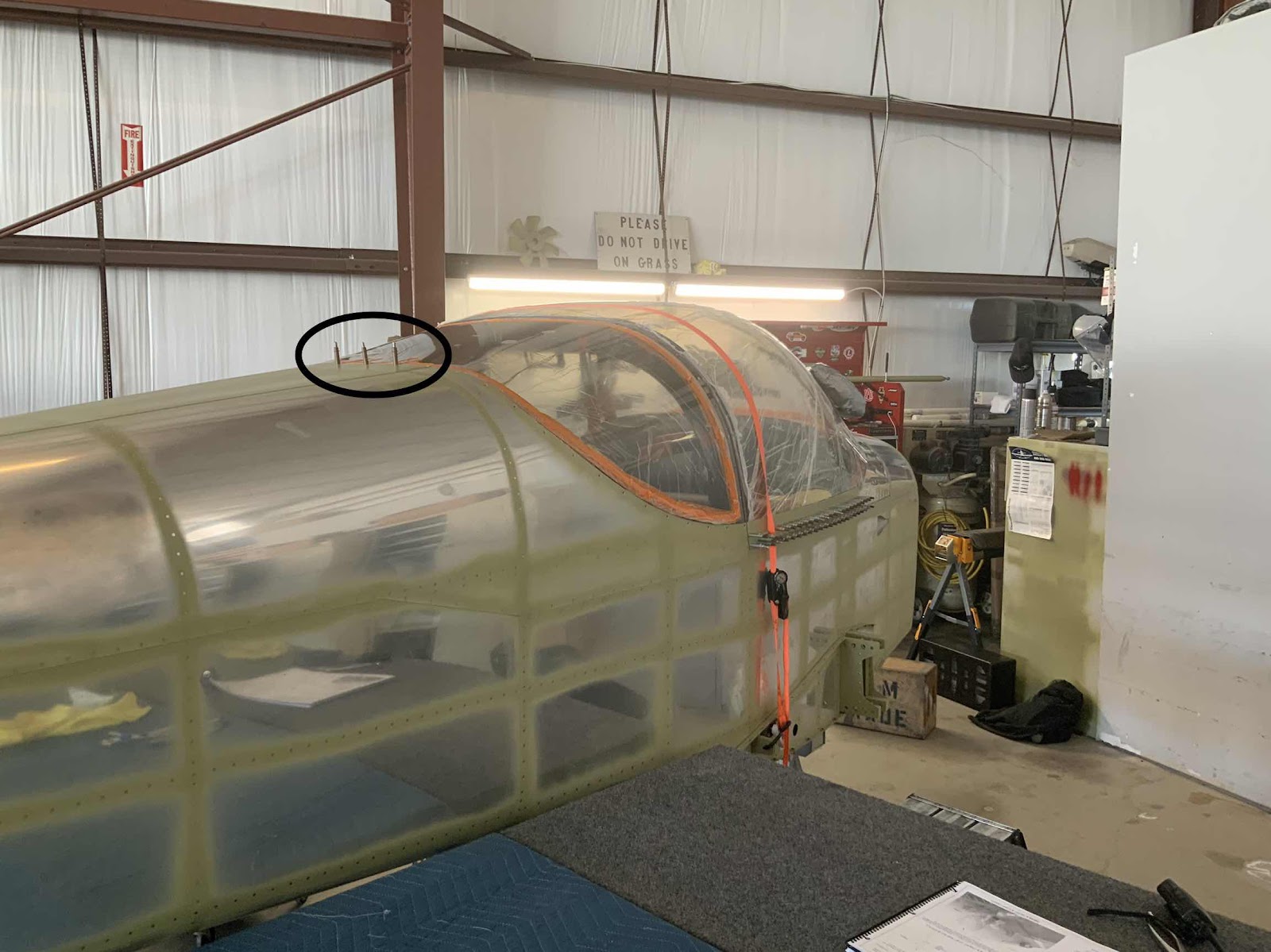

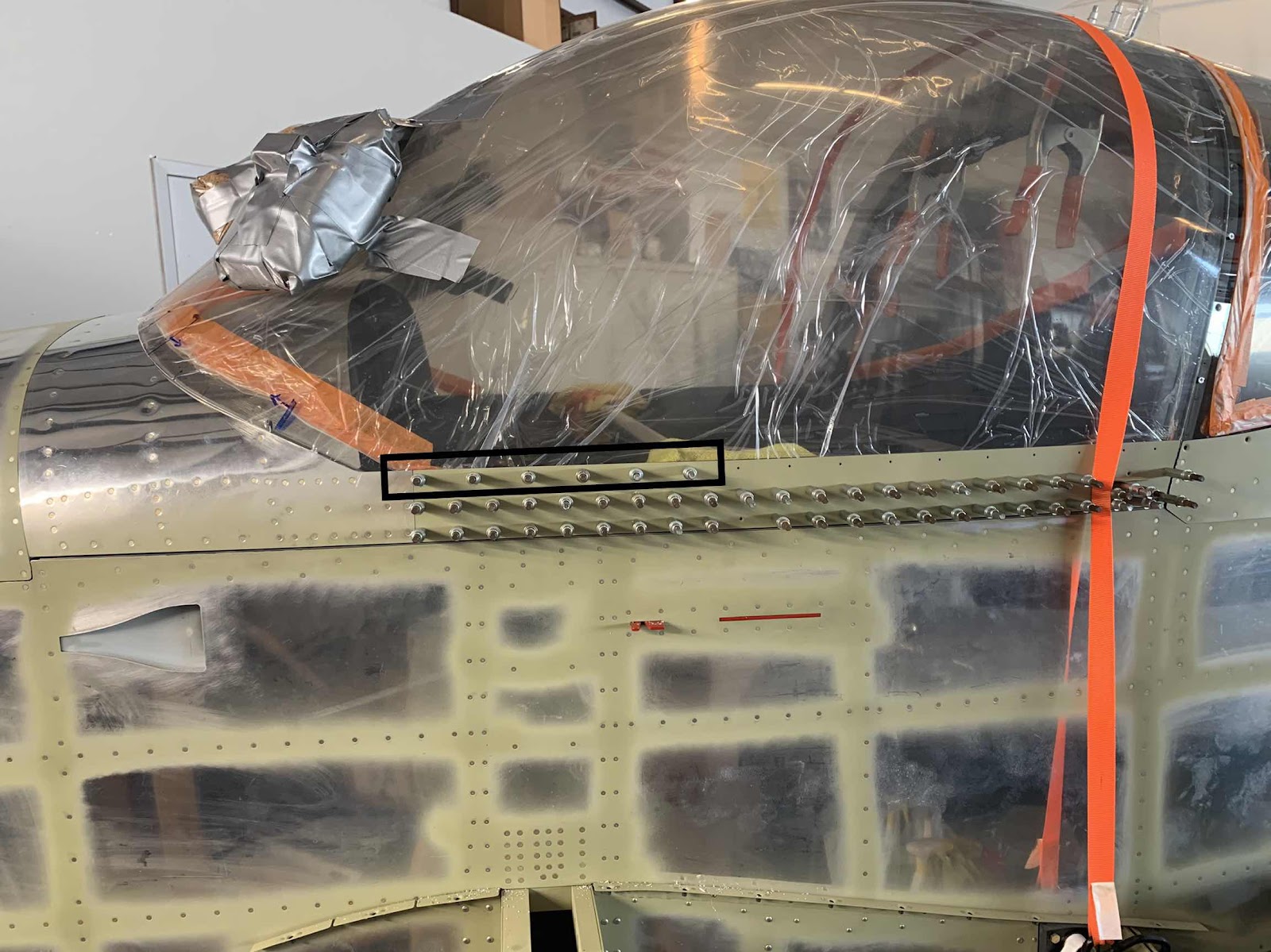

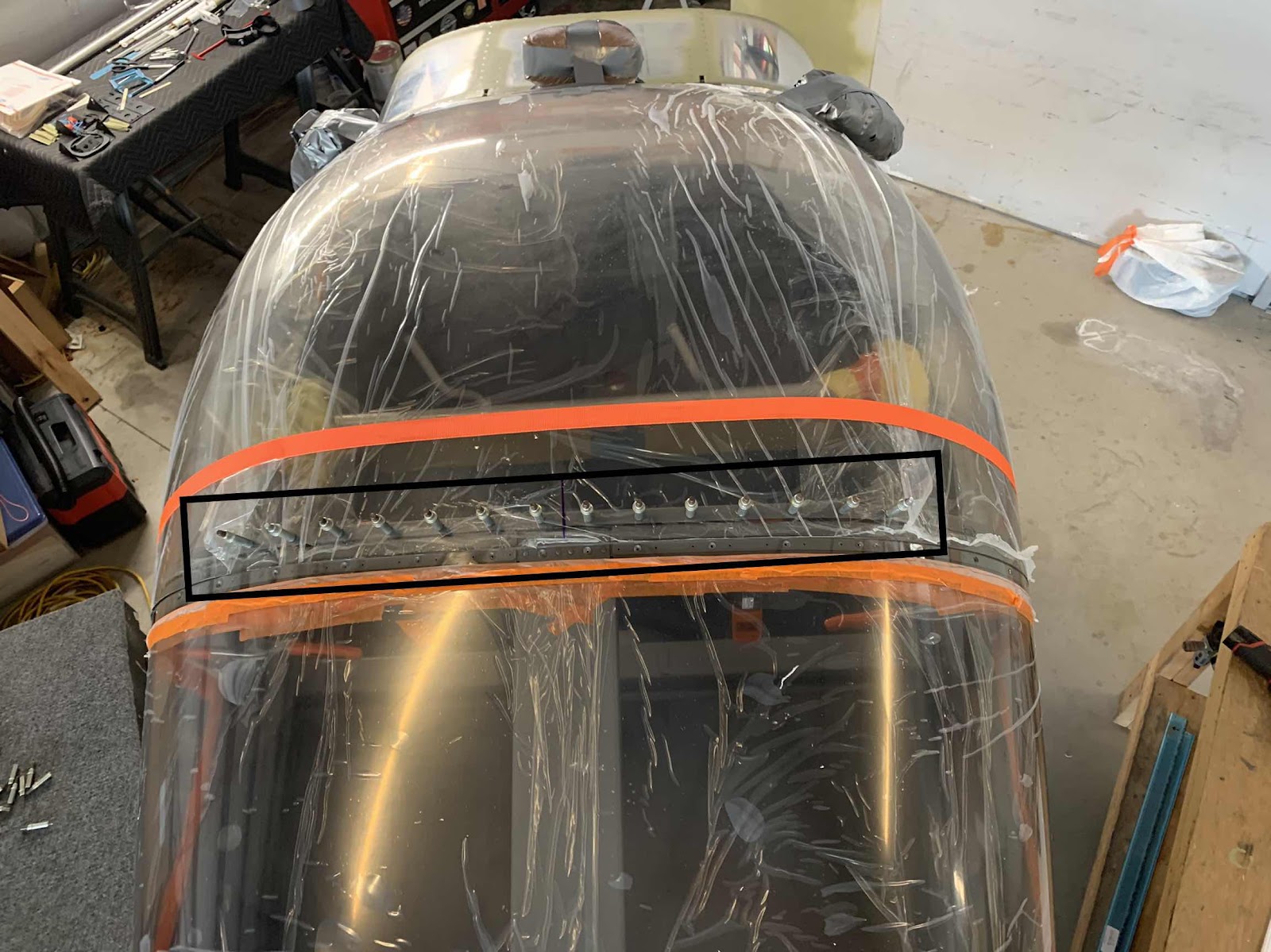

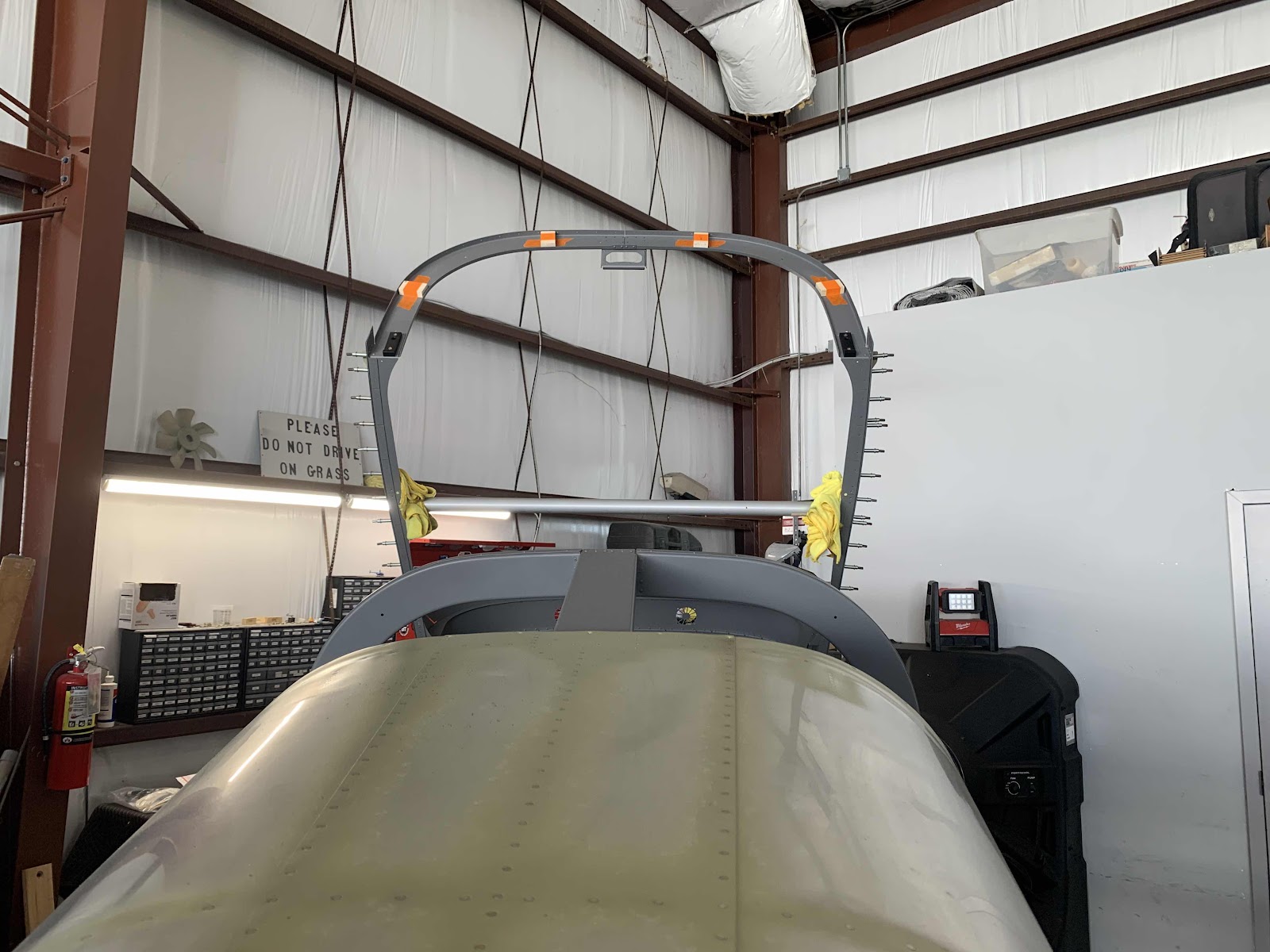

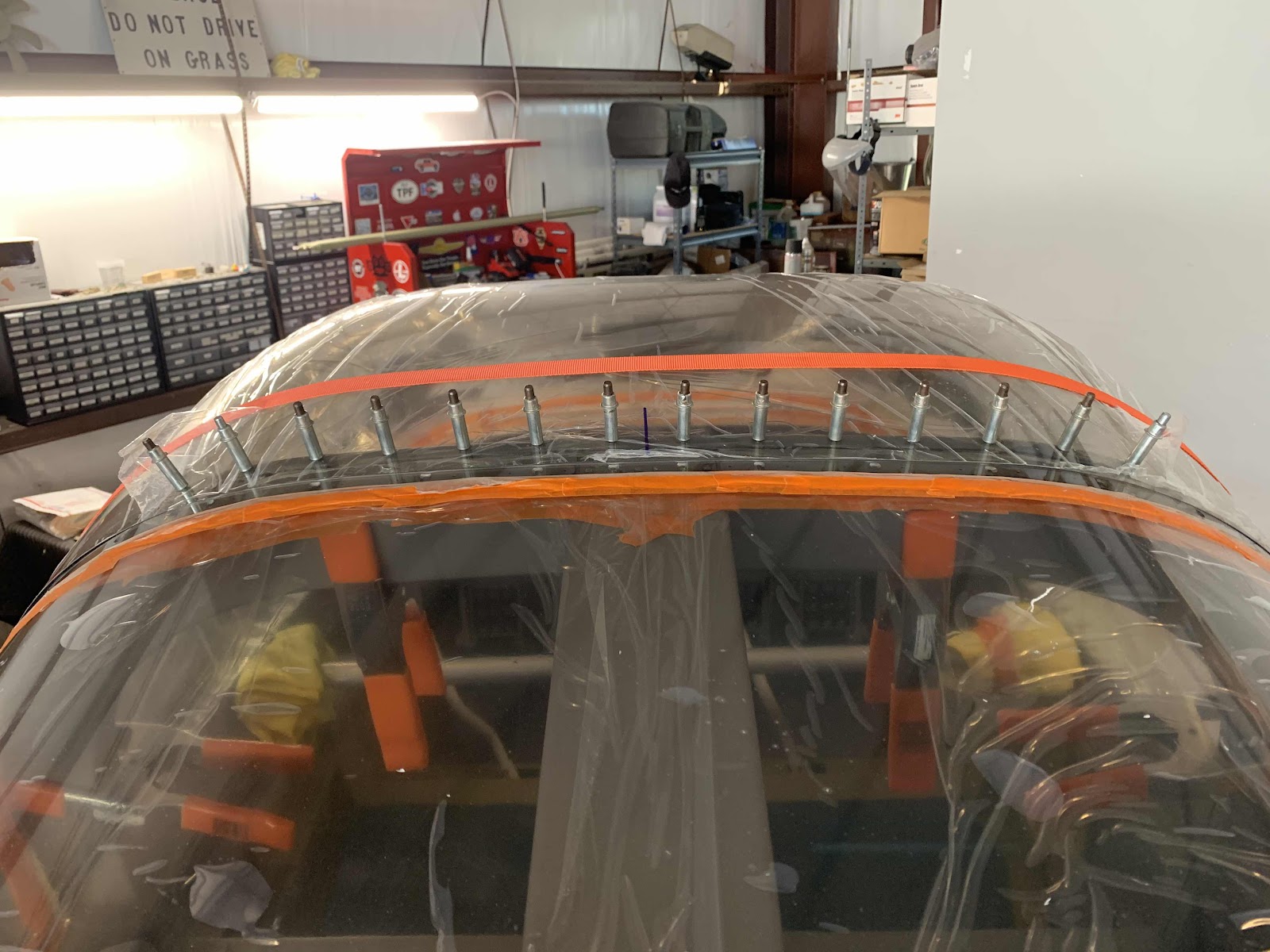

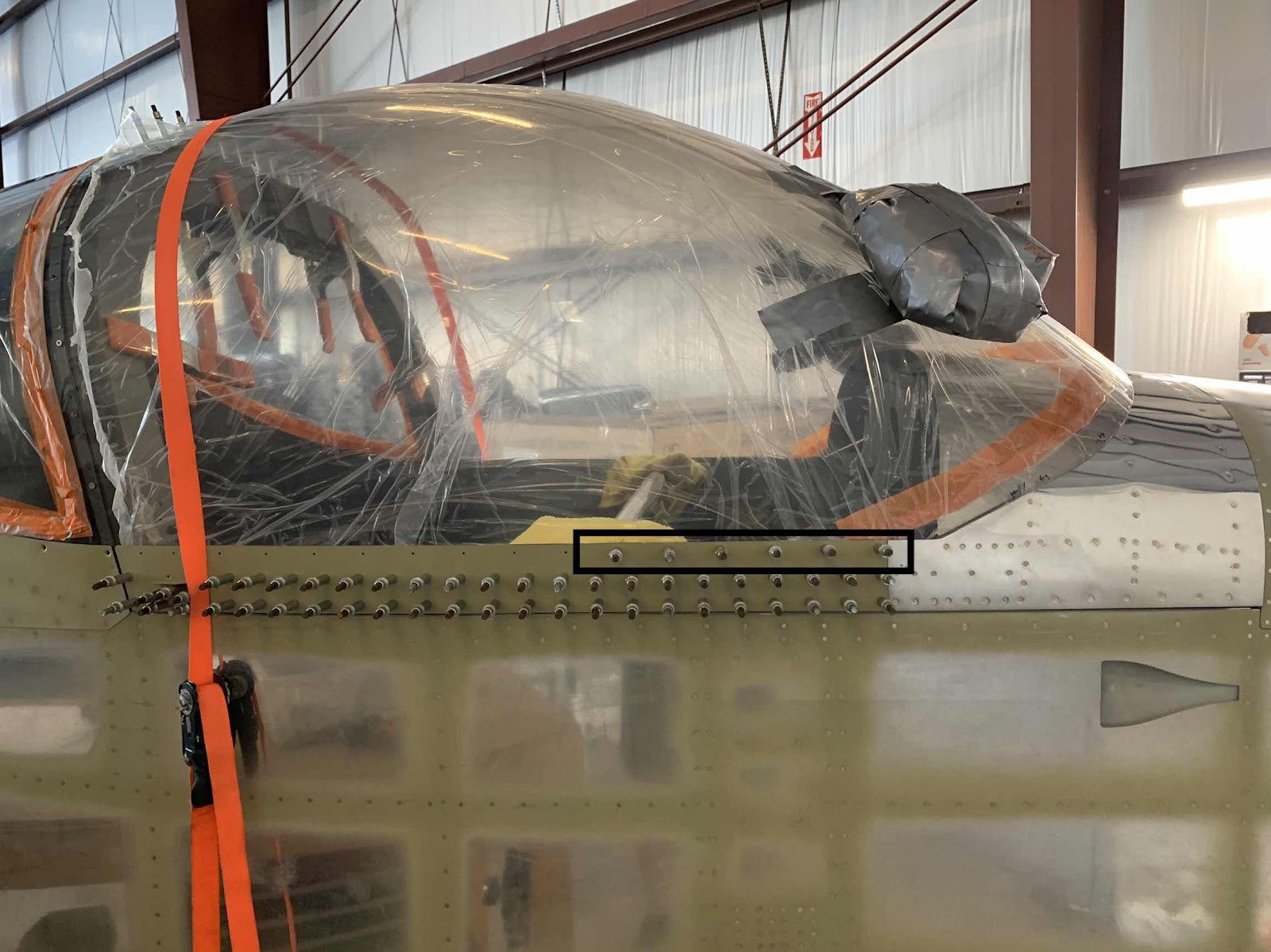

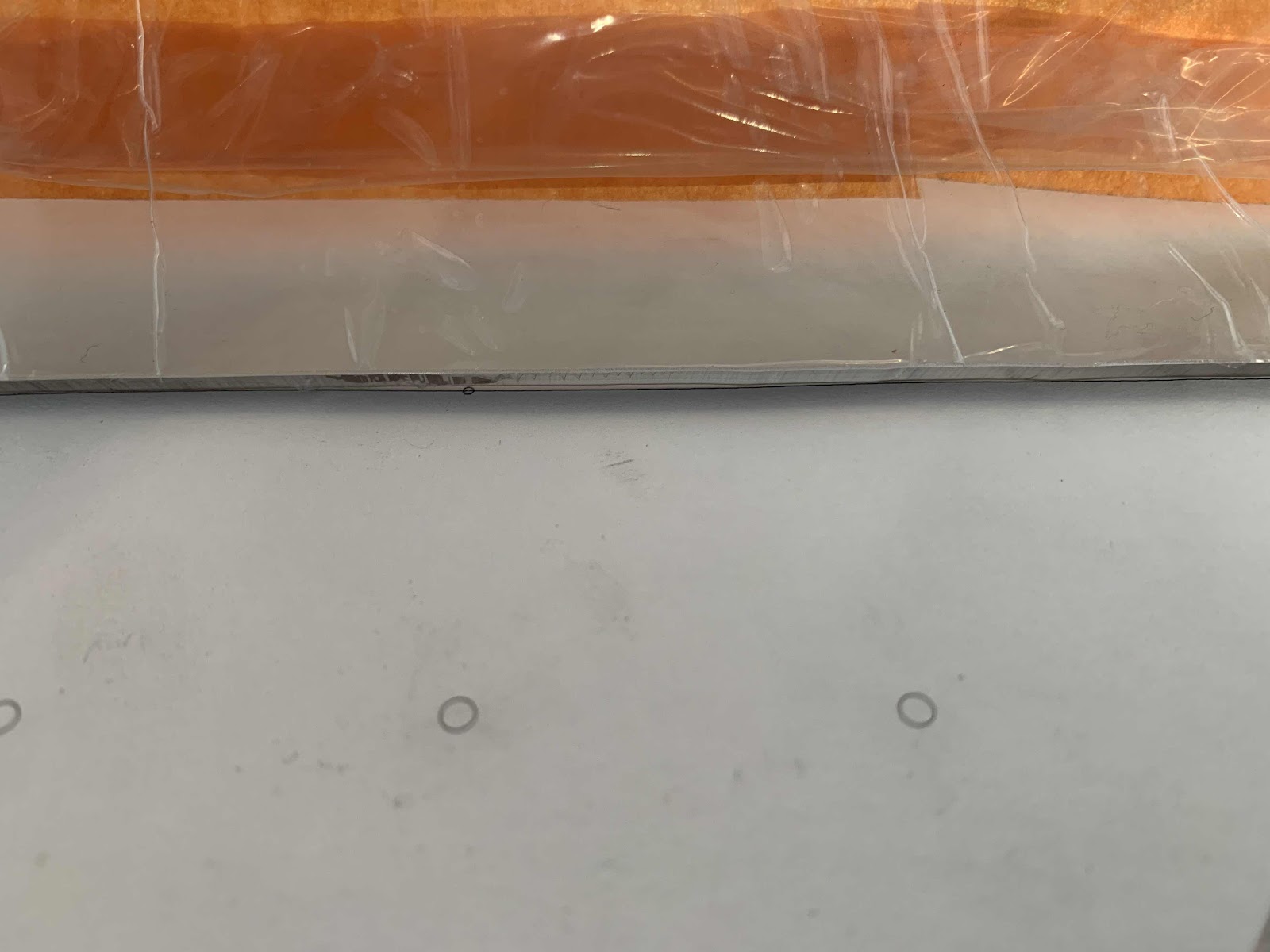

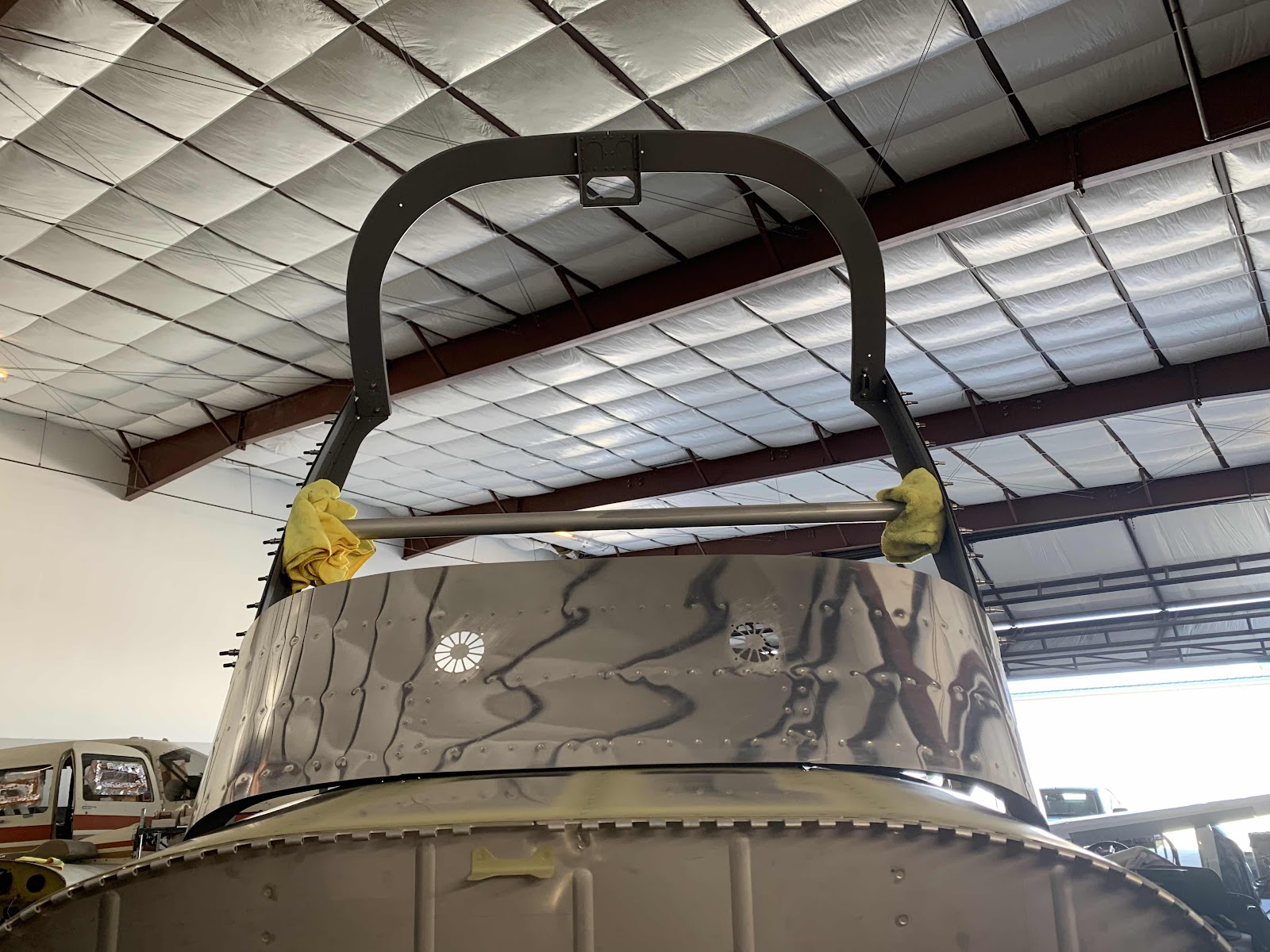

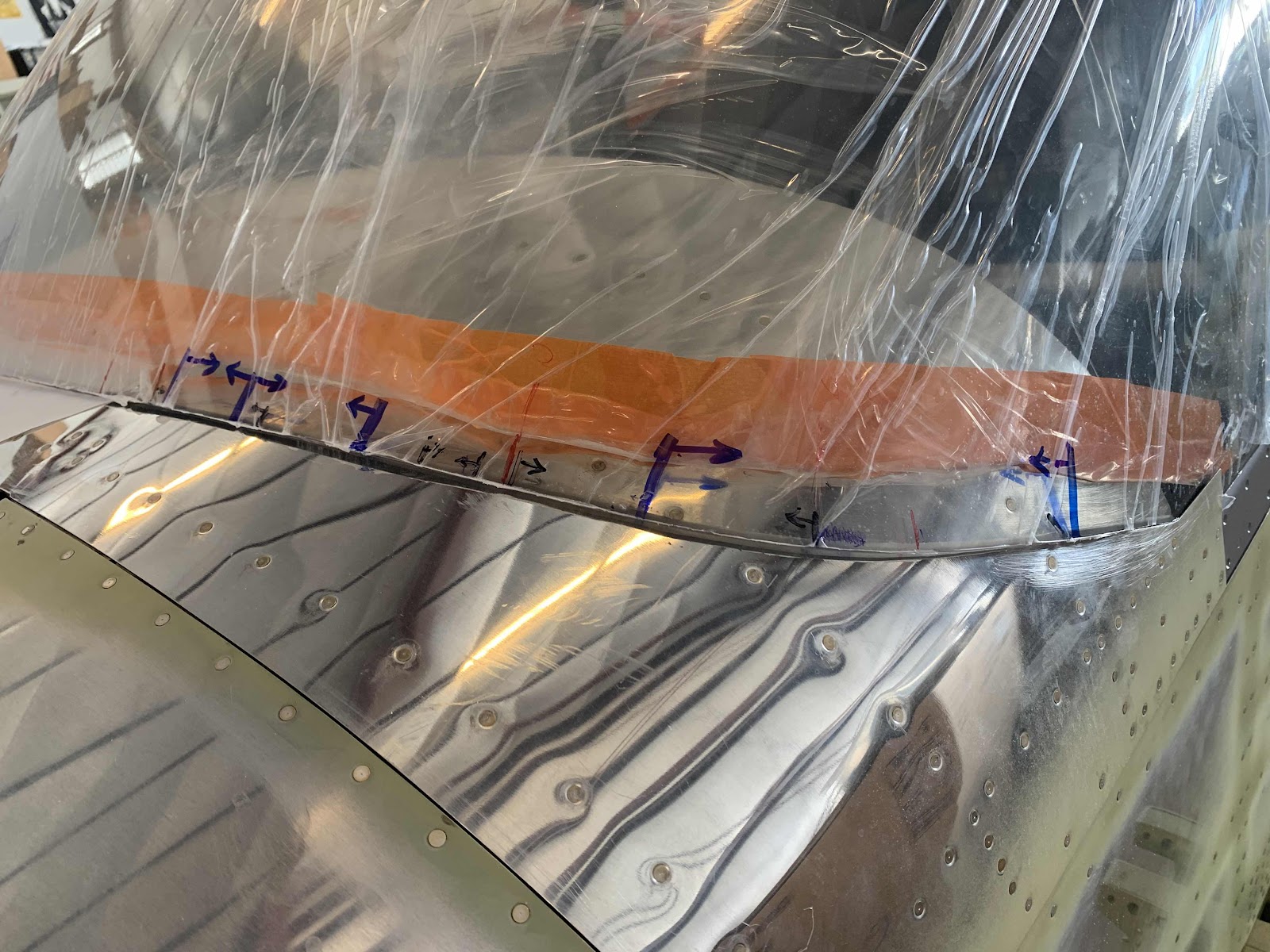

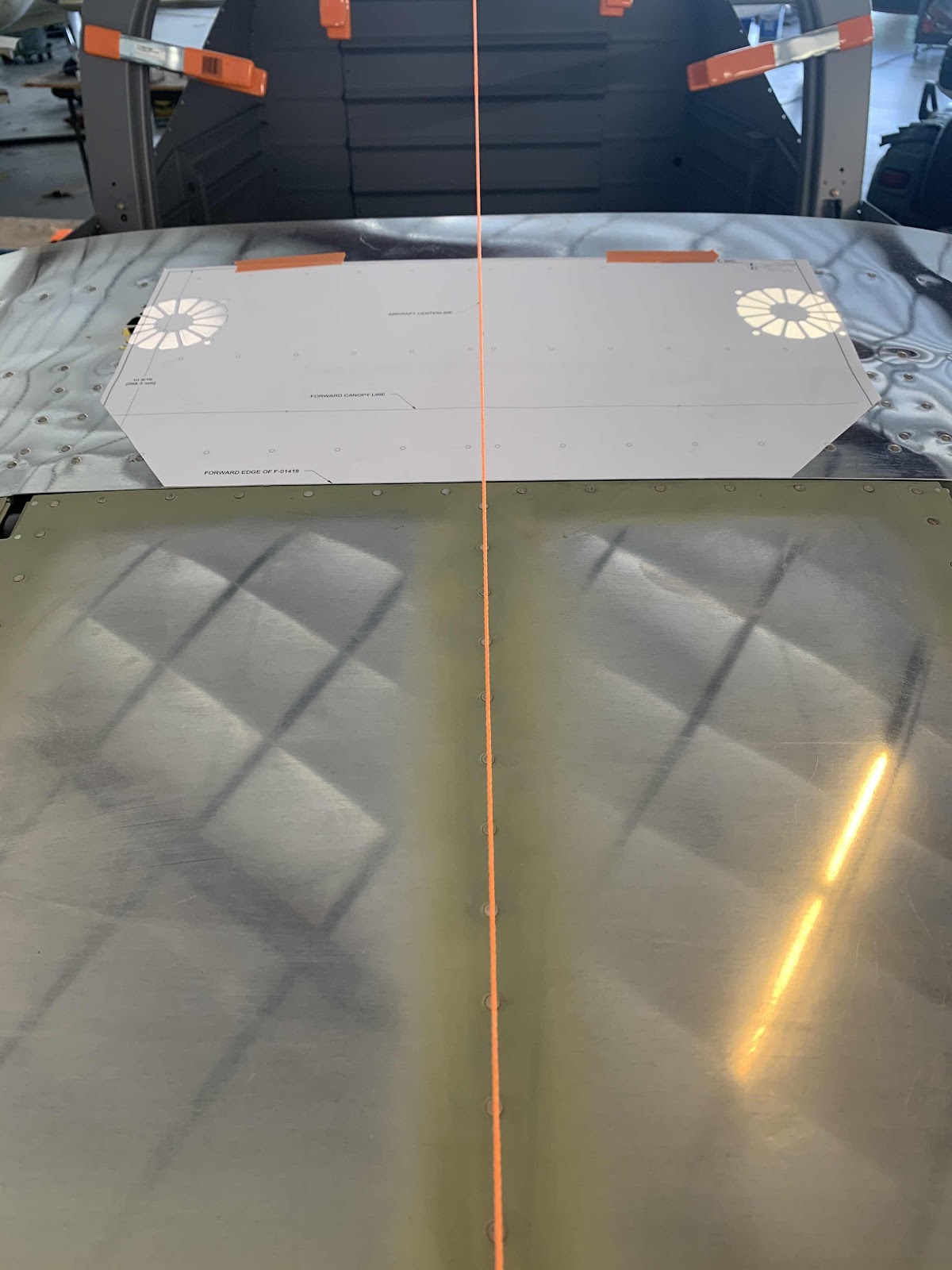

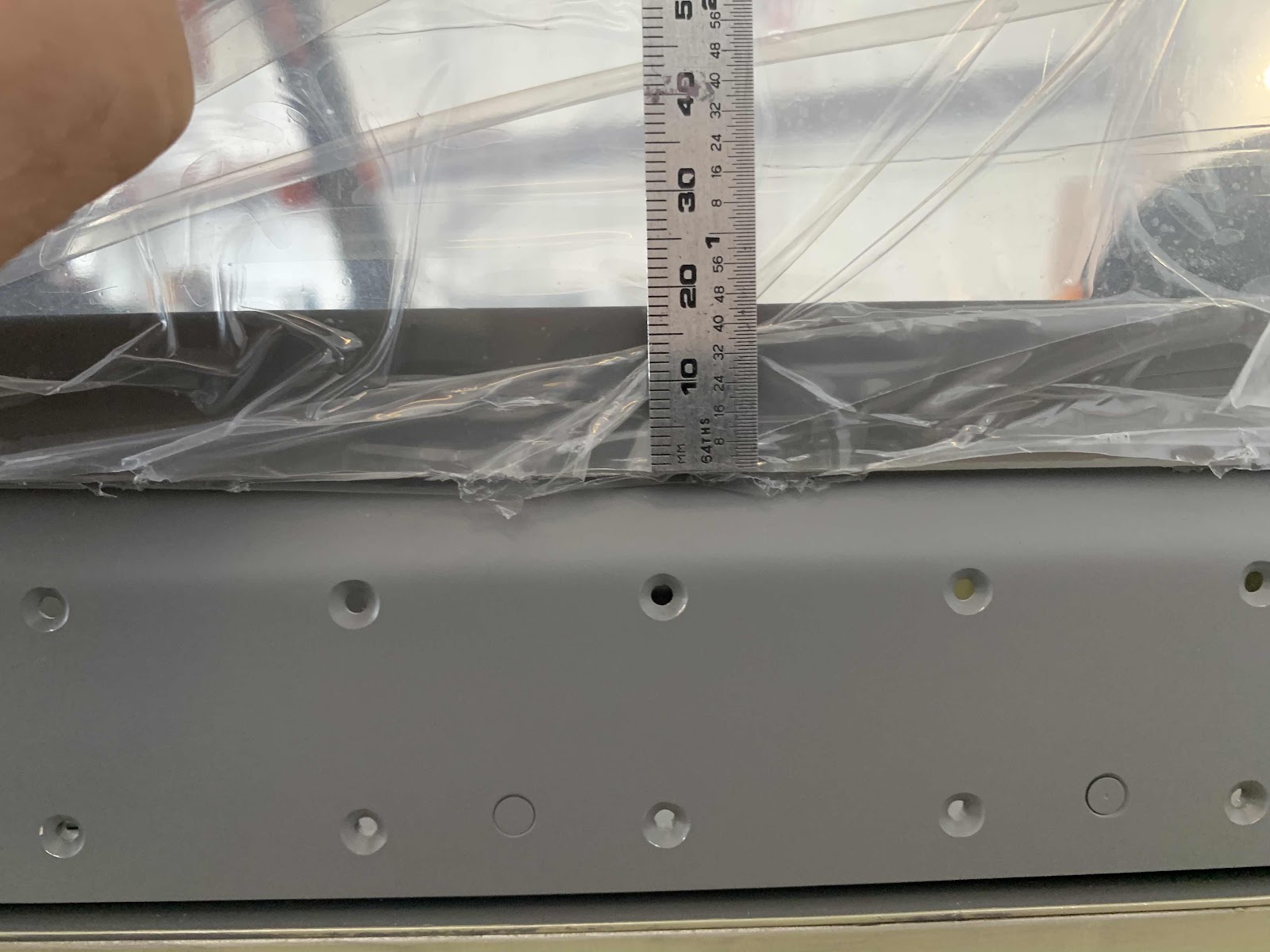

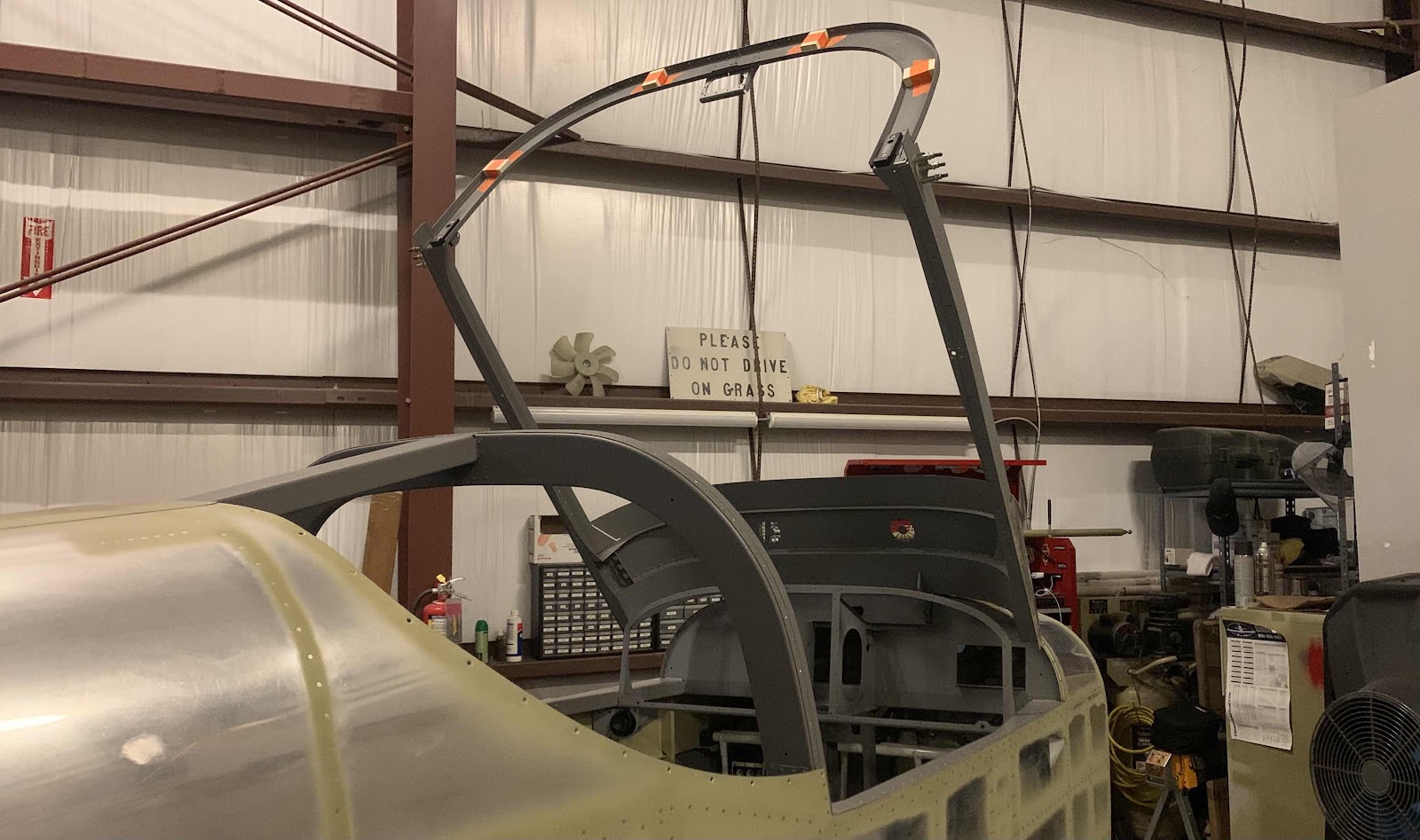

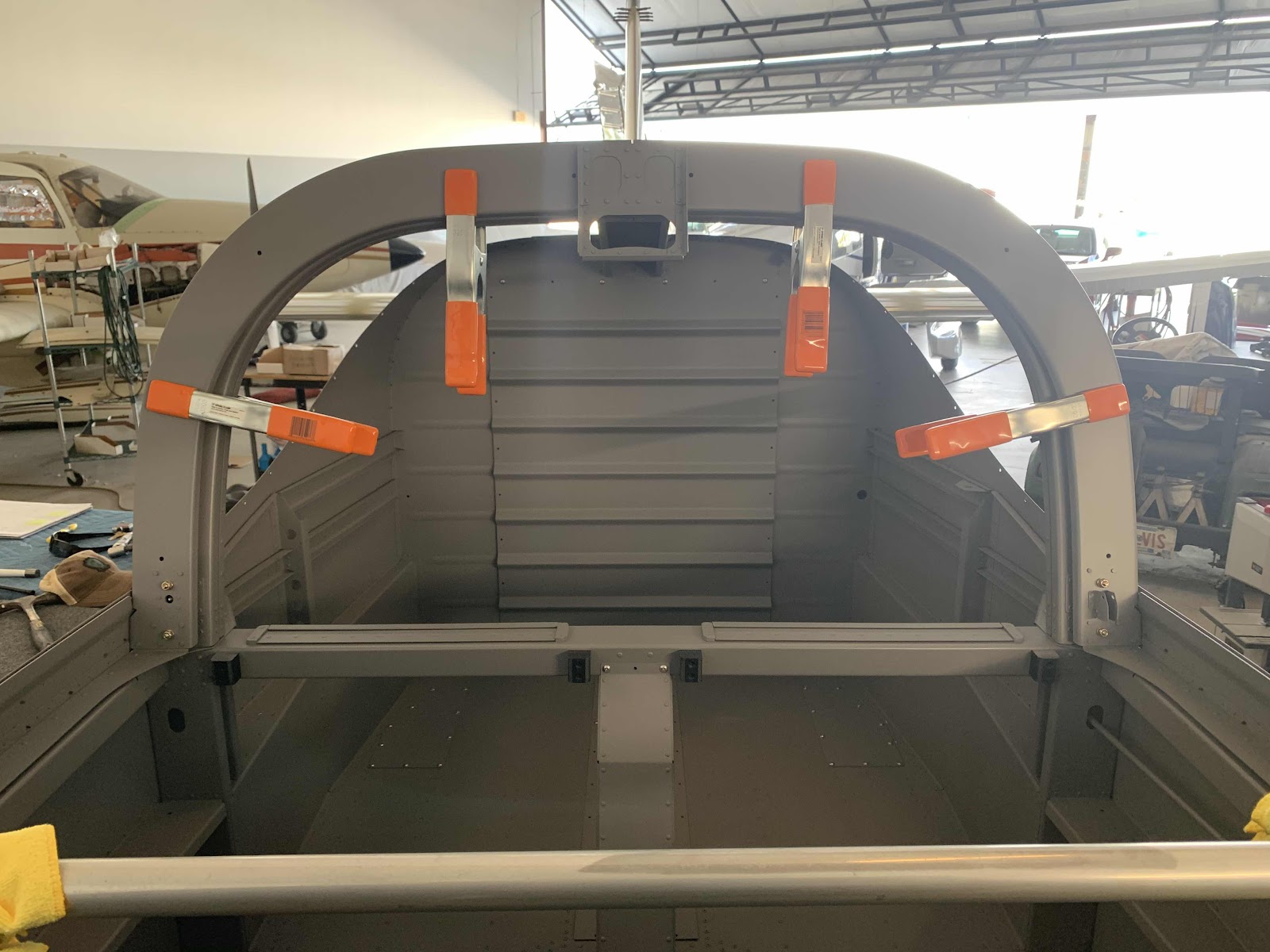

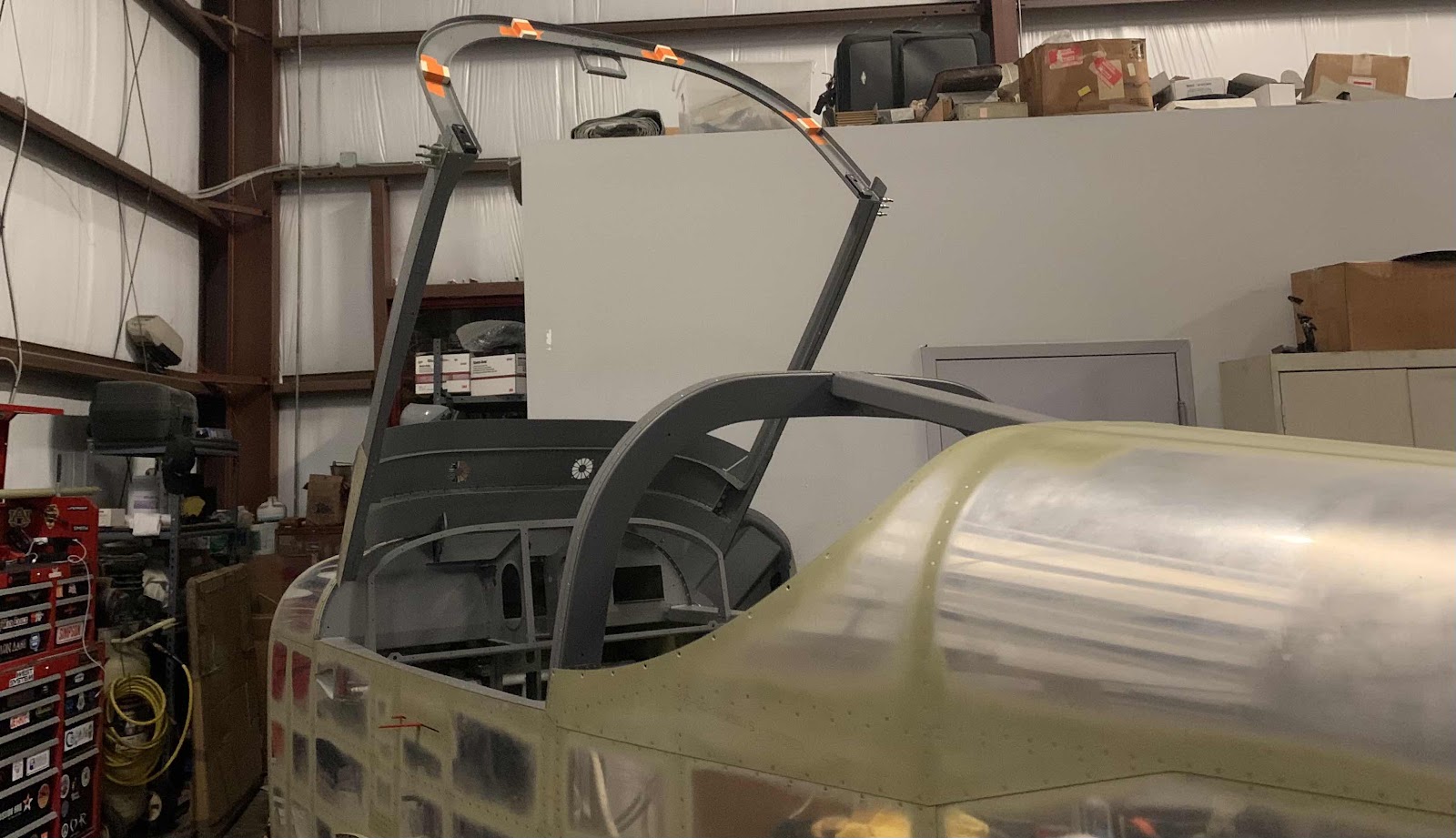

Finishing, Canopy and Window (Part 18)

We decided we want all the “important” parts in the cockpit to be red....the mixture knob (will eventually be installed with the engine),

- - the C-609 Canopy Latch (middle), treated with alumiprep/alodine, primed, and painted with two coats of single stage red paint

- - the C-607 Latch Handle (bottom),  treated with alumiprep/alodine, primed, and painted with two coats of single stage red paint

- - VA-104-1A knob (bottom), sanded smooth, primed, and painted with two coats of single stage red paint (came yellow from Van’s)

- - C-014444 Canopy Jettison Handle, scuffed up with grey Scotchbrite, primed and painted with two coats of single stage red paint (came powedercoated from Van’s)

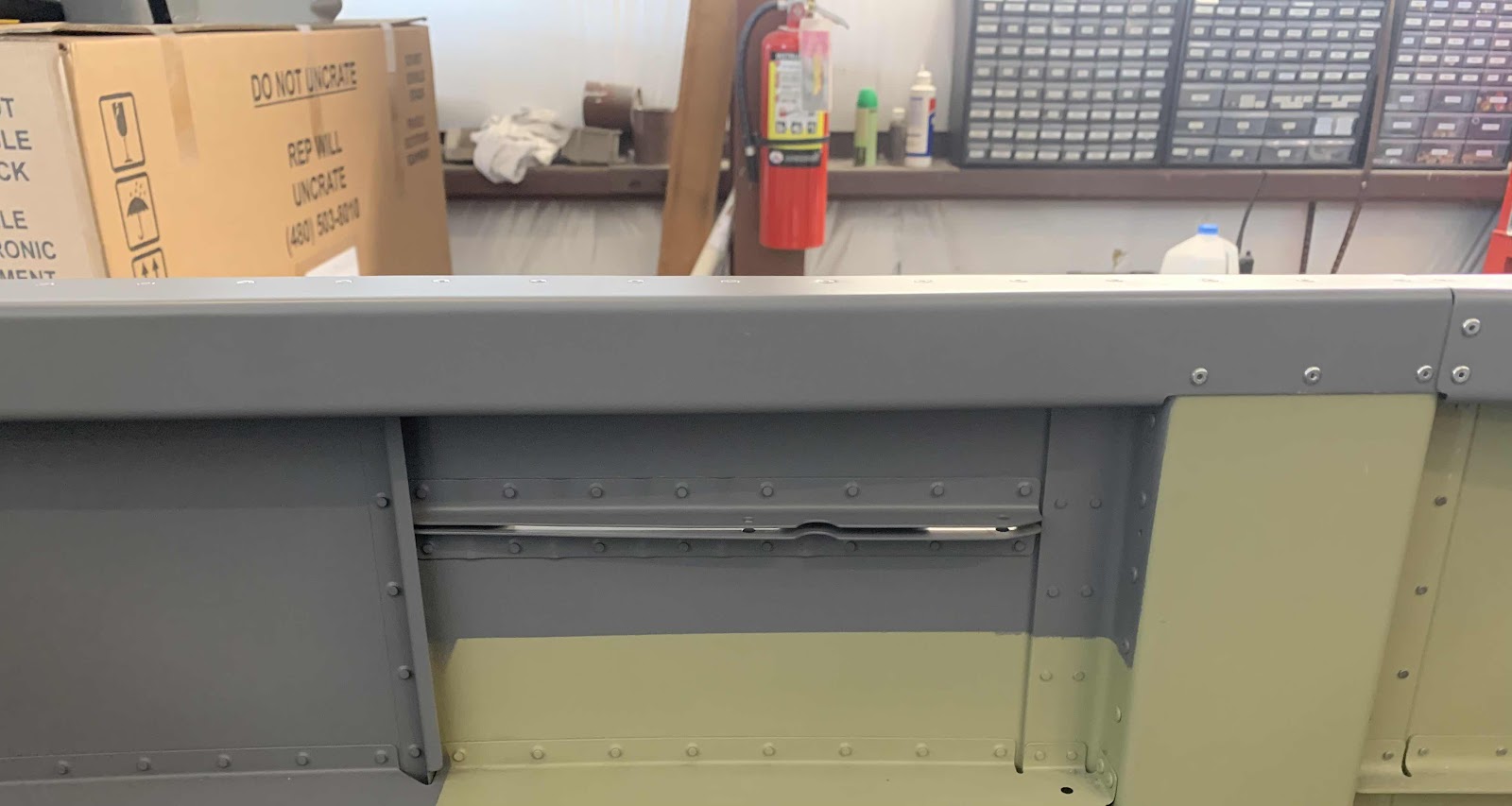

I looked at several additional pictures of the side panels from Classic Aero Designs.  Just to make sure none of the green primer will be seen after the panels are installed, I painted the area around the brackets.  Figured it would would be much easier now.

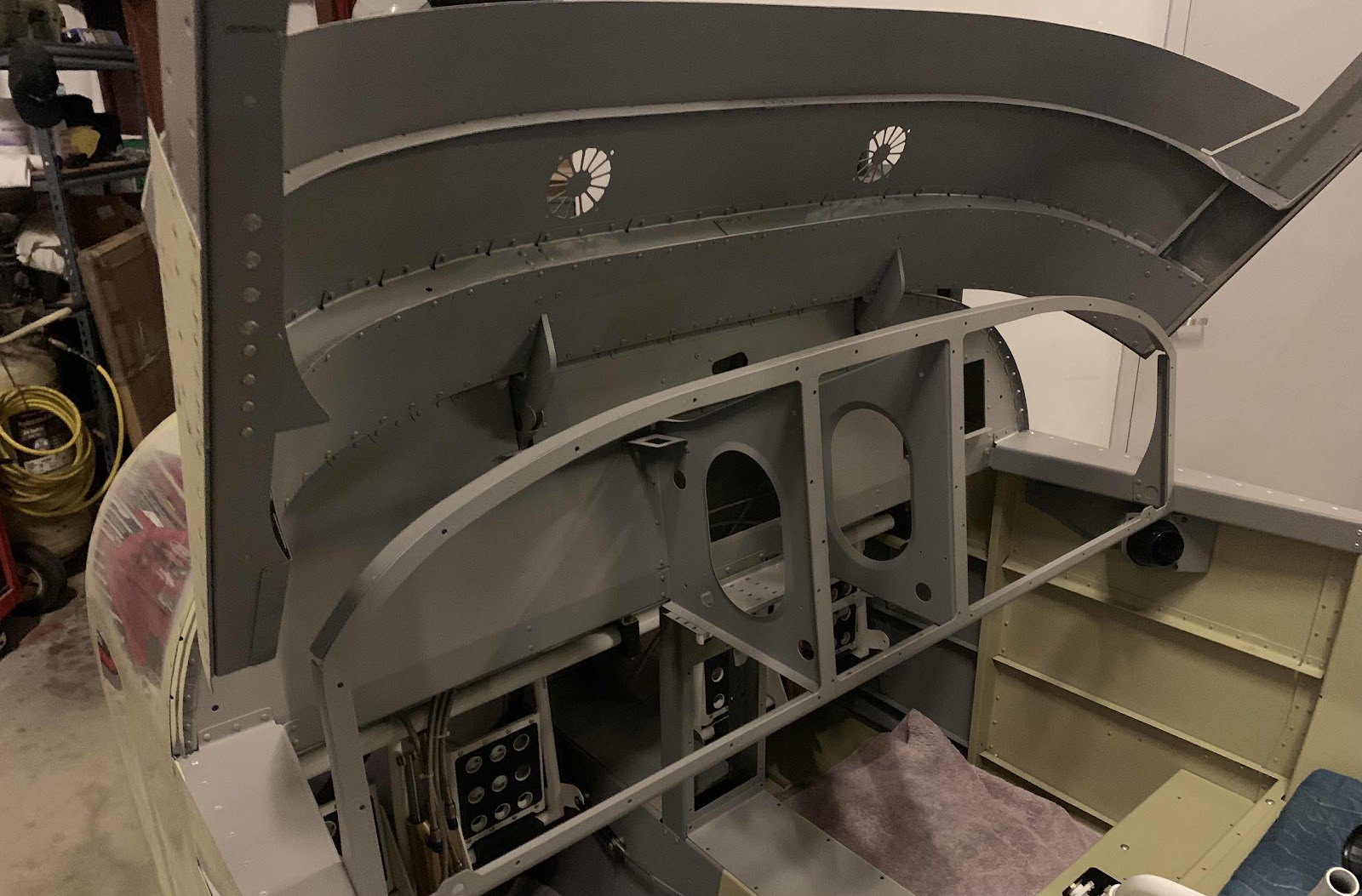

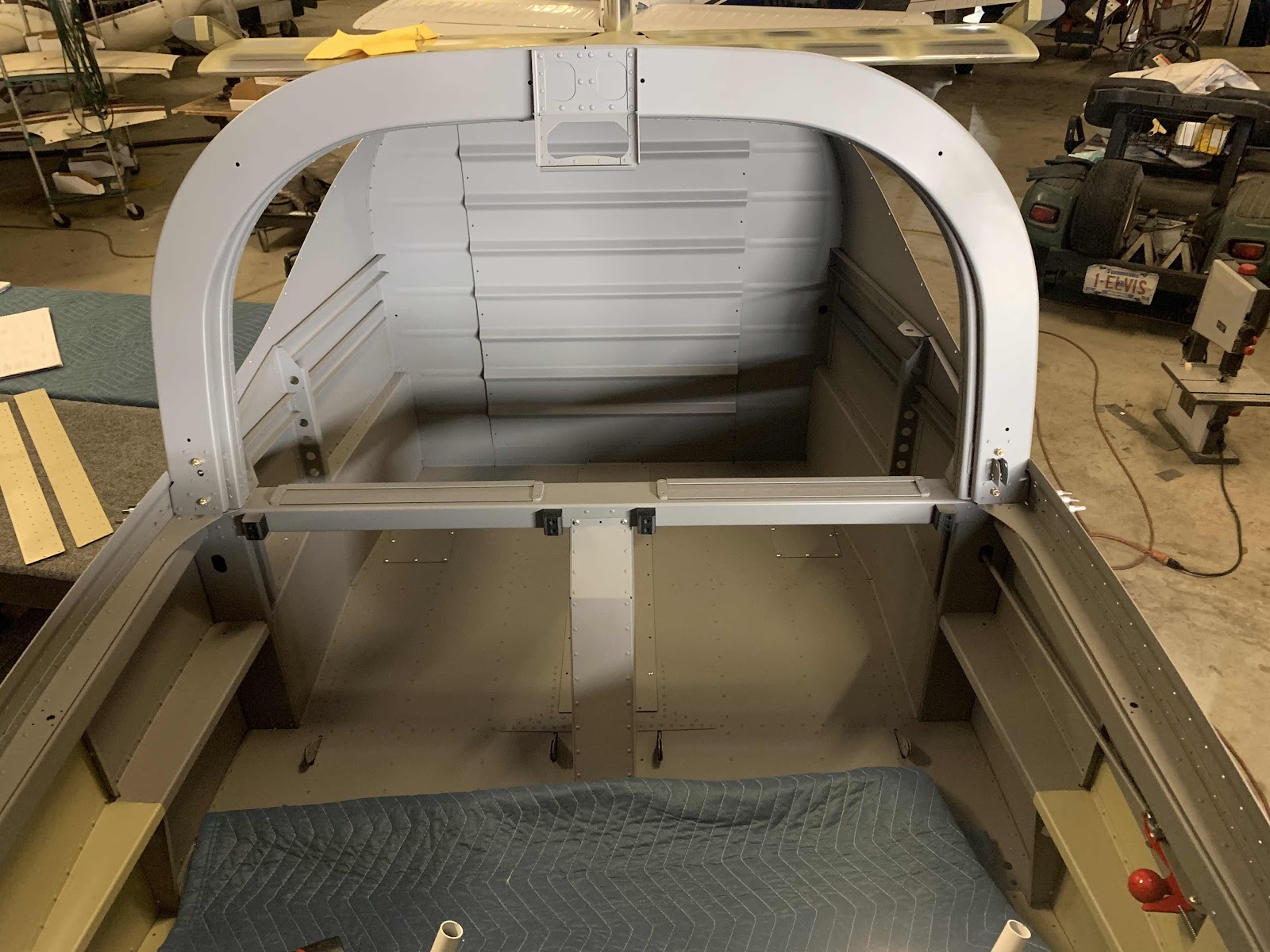

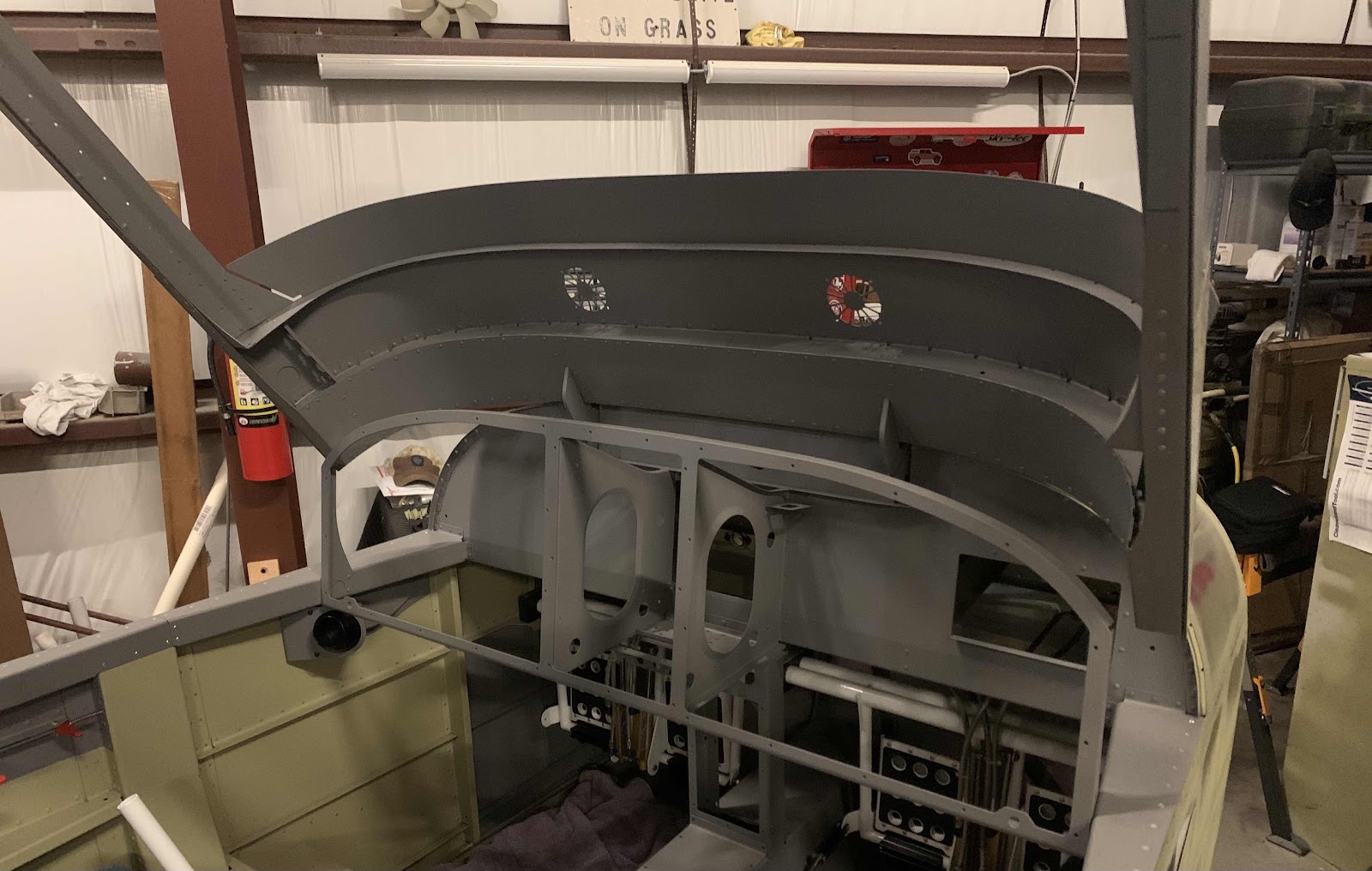

Once all the paint was dry, I installed the parts on the Fuselage.  Previously, I completed the assembly of the Canopy Latch Pushrod Assembly.....it is shown where attached to the Latch Handle.

Here is a close up.

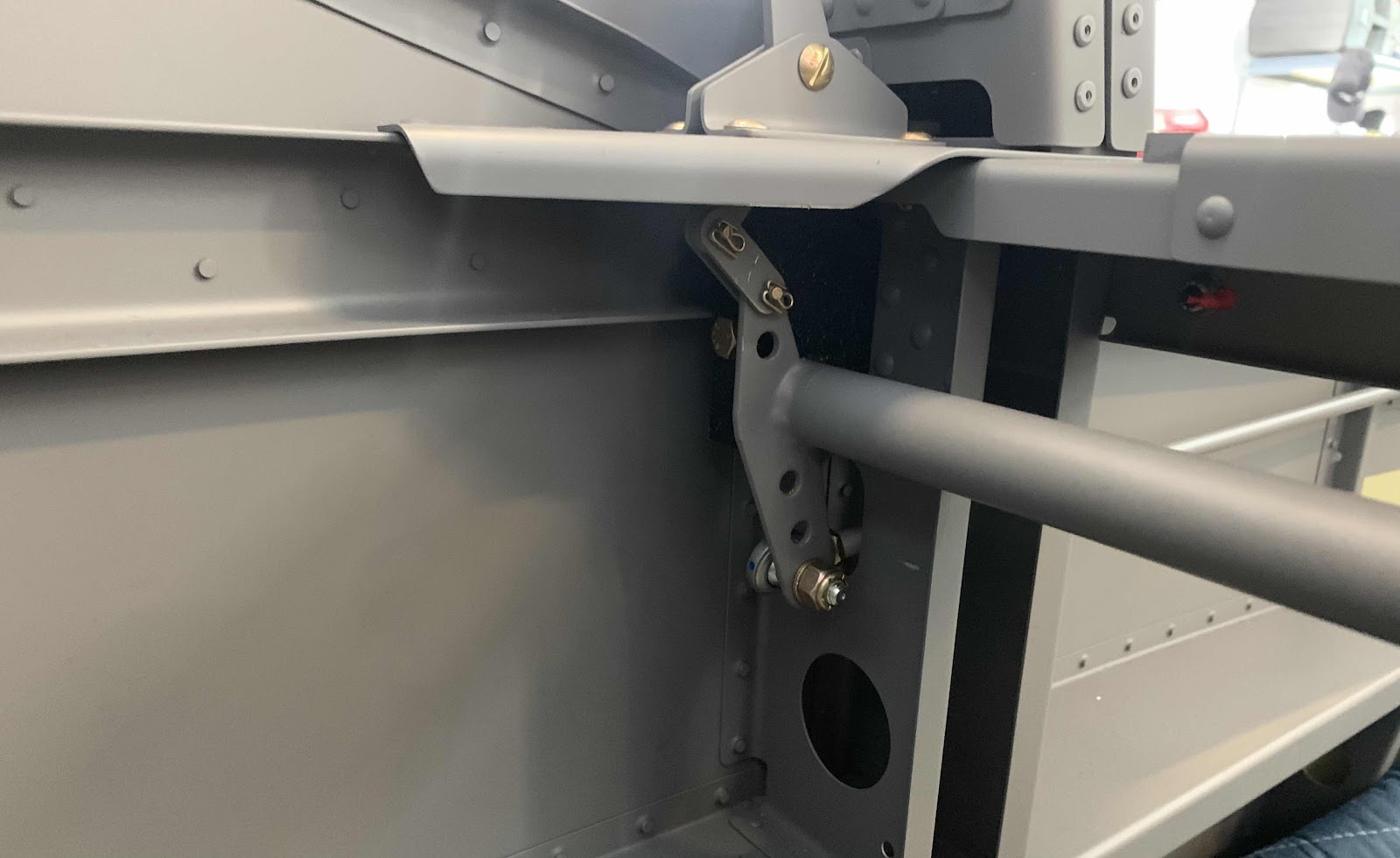

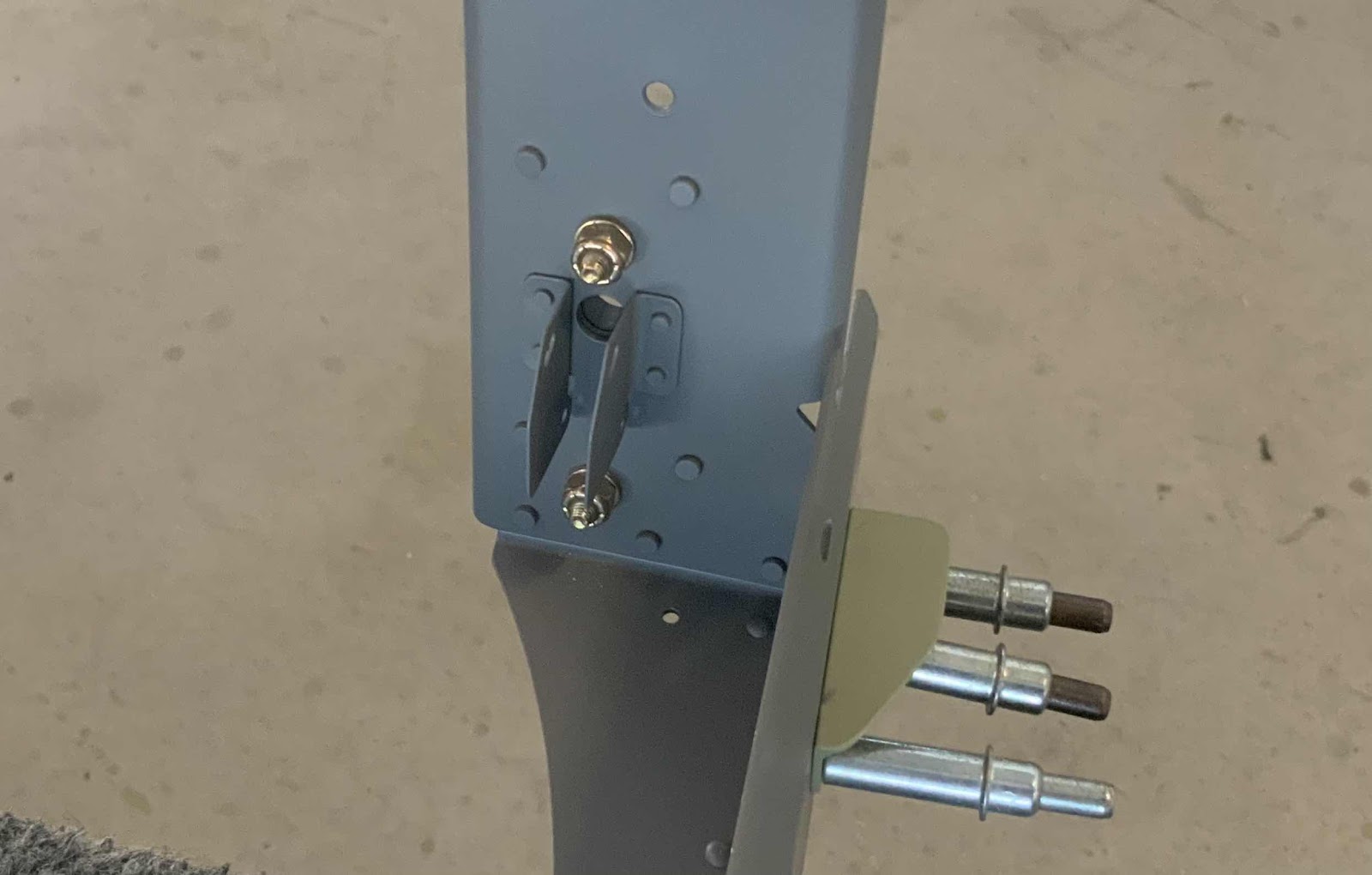

This is the view from the rear side showing the Canopy Latch Pushrod Assembly attached to the C-01438 Canopy Latch Torque Tube (hardware at the bottom).
