Fuselage, FWD/MID Side Structure (Part 4)

To start the today’s session, I Akzo primed the two Upper Drag Fittings, two Lower Drag Fittings, and two Center Section Side Panels.  I let them dry for a little bit and then installed on them on the Fuselage.

The left and right F-01442 Lower Drag Fittings were installed on the Fuselage using two AN6-42A bolts (large bolts), three NAS1149F0663P washers, and two AN365-624A nuts.  The small bolt is an AN3-14A with MS21042-3 nut.  The bolts were only installed finger tight and will be final torqued later.

Here is the left Lower Drag Fitting.....

.....F-01485-L Center Section Side Plate.....

.....right Lower Drag Fitting.....

.....F-01485-R Center Section Side Plate.....

.....F-01464-L Upper Drag Fitting.....

.....and F-01464-R Upper Drag Fitting.

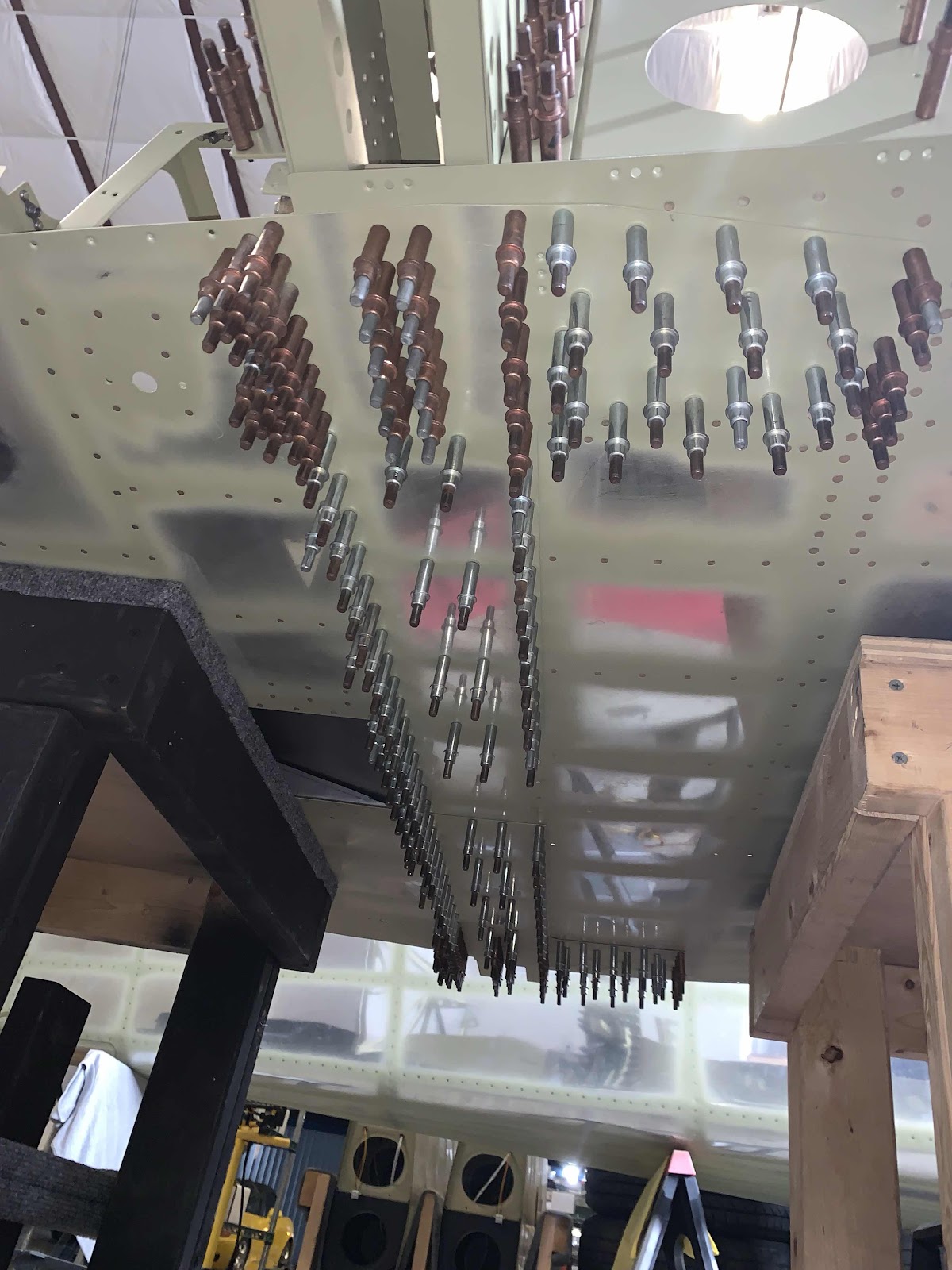

Lastly, here is the bottom view of the F-01483-L & -R Forward Bottom Skins and F-01484 Center Bottom Skin all clecoed together.
