Tuesday, May 7, 2019

Fuselage, FWD/MID Bulkheads (Part 7)

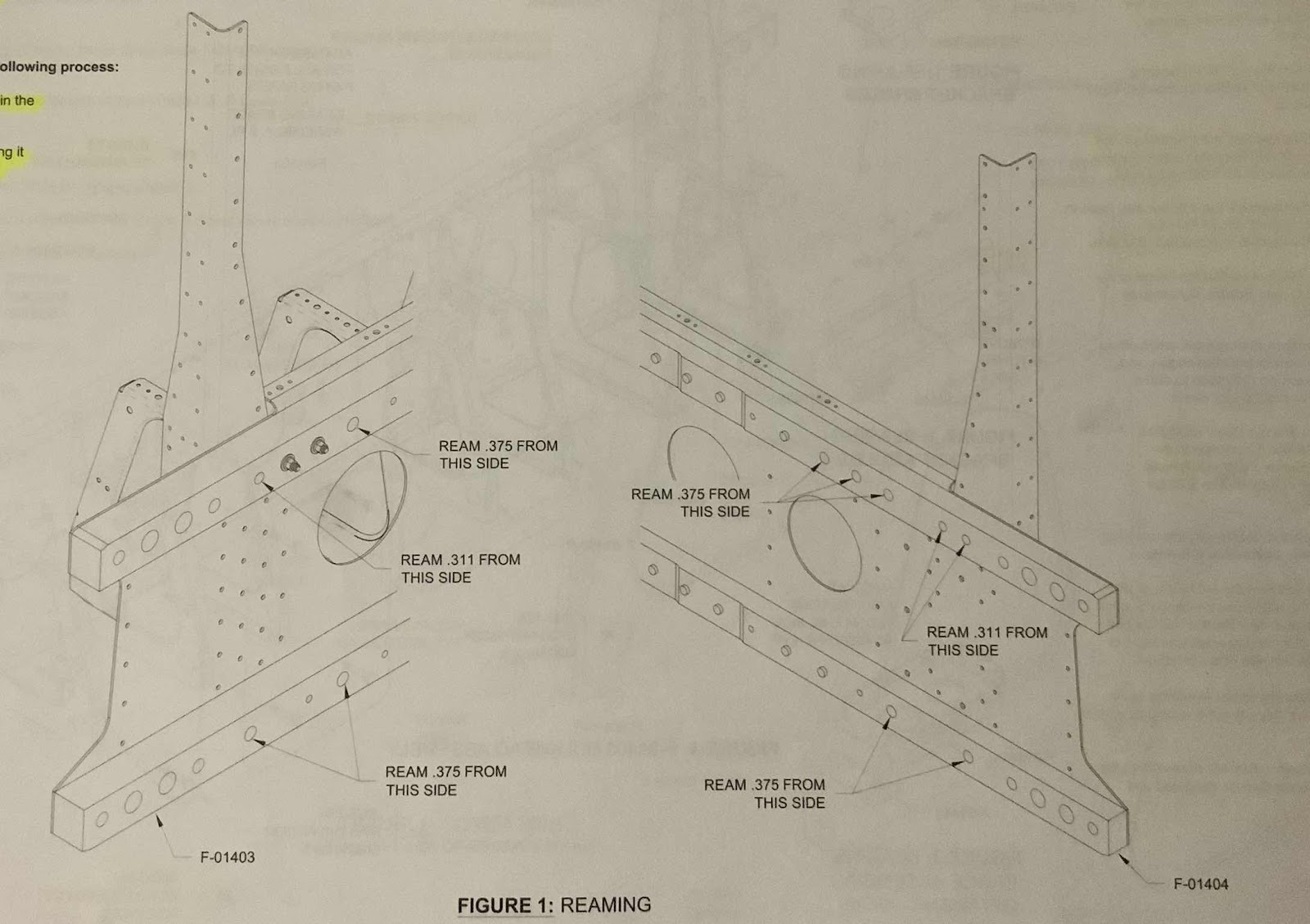

The last step remaining to complete Section 25 is to ream the 22 holes in the F-01404 (14 holes) and F-01403 (8) Bulkhead Assemblies. Of the 22 holes, 16 are reamed .375 and six are reamed at .311. Here is the excerpt from the plans showing the hole locations in the two Bulkheads.

Section Complete
