Wednesday, January 24, 2024

Panel Build (Part 5)

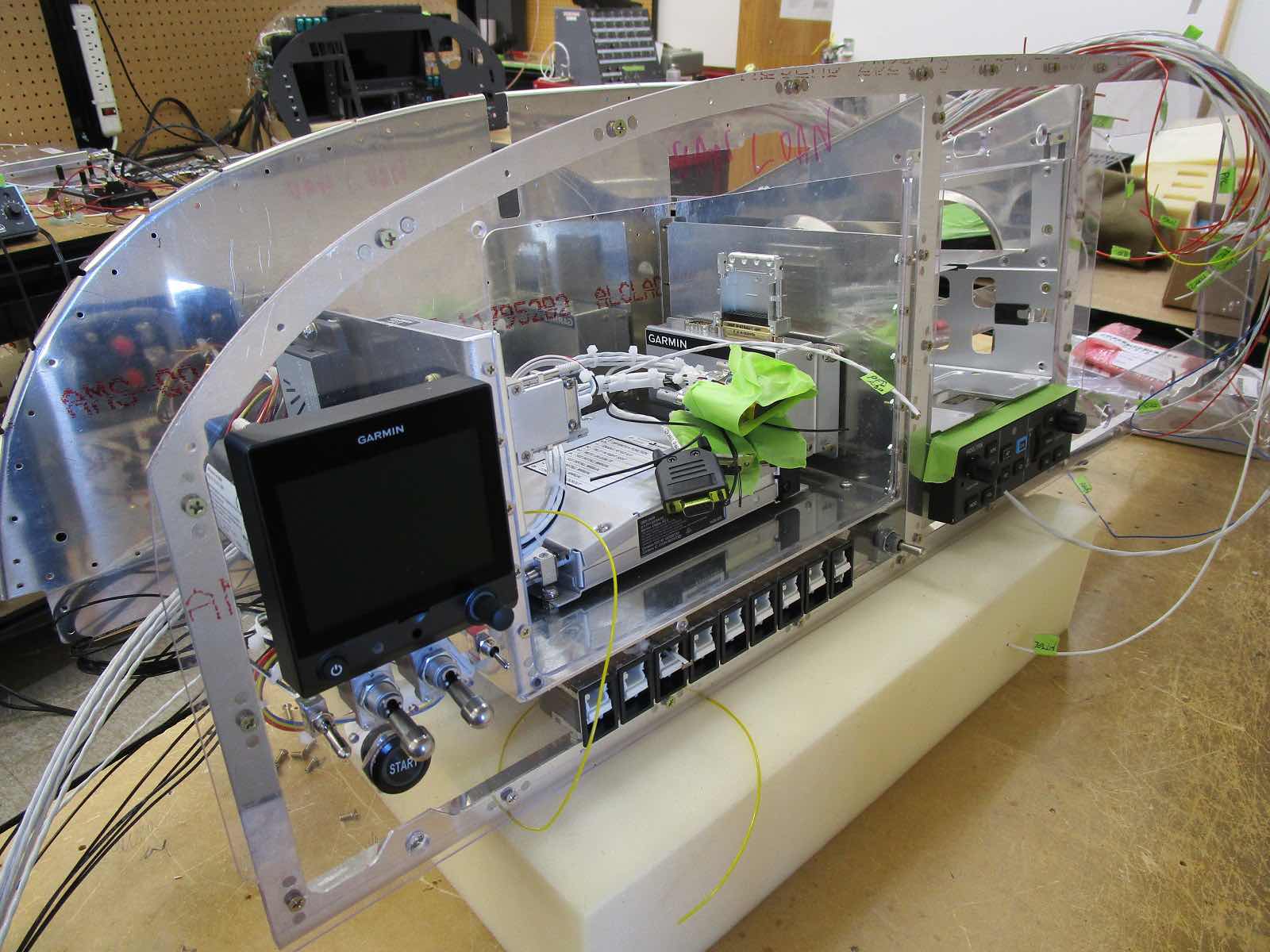

These two pictures are from February 23, 2022. The first one shows the G5 and associated switches in/around it (backup battery power, magneto switches, test switch, push to start).

This pictures just shows the back of the panel and amount of wires that are starting to show up…..

*****Pictures from Jason at Aerotronics*****
