Wednesday, June 19, 2019

Fuselage, Firewall (Part 4)

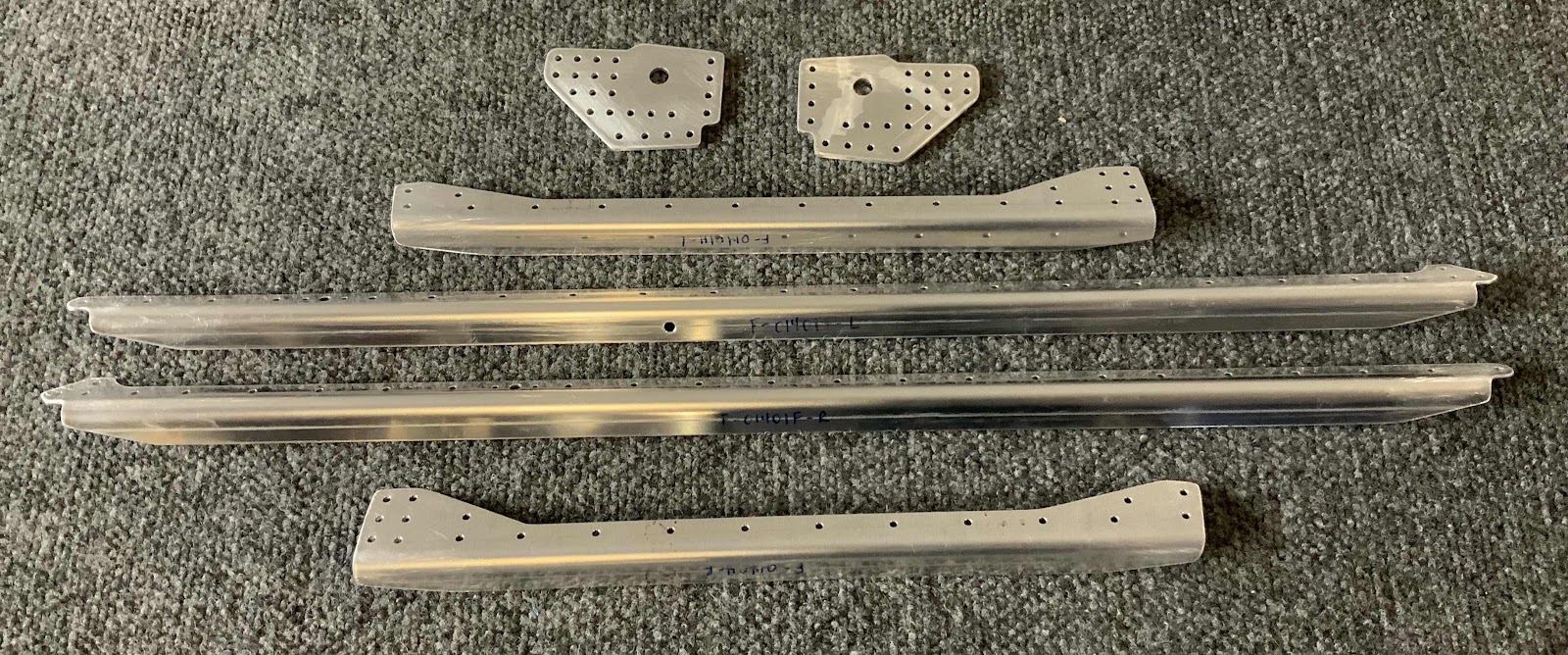

Today’s work on the Firewall was a relatively short session. Shown below is the:

- F-01401K, Gussets (x2)

- F-01401H (L & R), Firewall Angles (small angles)

- F-01401F (L & R), Firewall Angles (large angles)

I separated the parts (as required), cleaned the edges, and deburred the holes. Most of the holes now need to be countersunk, so I wills start there during the next session.
