Fuselage, Firewall (Part 3)

Tonight, I riveted the F-01490 Nose Gear Brackets, F-01451 (-L & -R) Tunnel Sides, and F-0141E (-L & -R) Firewall Angles together using AN470AD4-5 and AN470AD4-6 rivets as directed by the plans. Here is the Left Tunnel Side Assembly after the rivets were installed.....

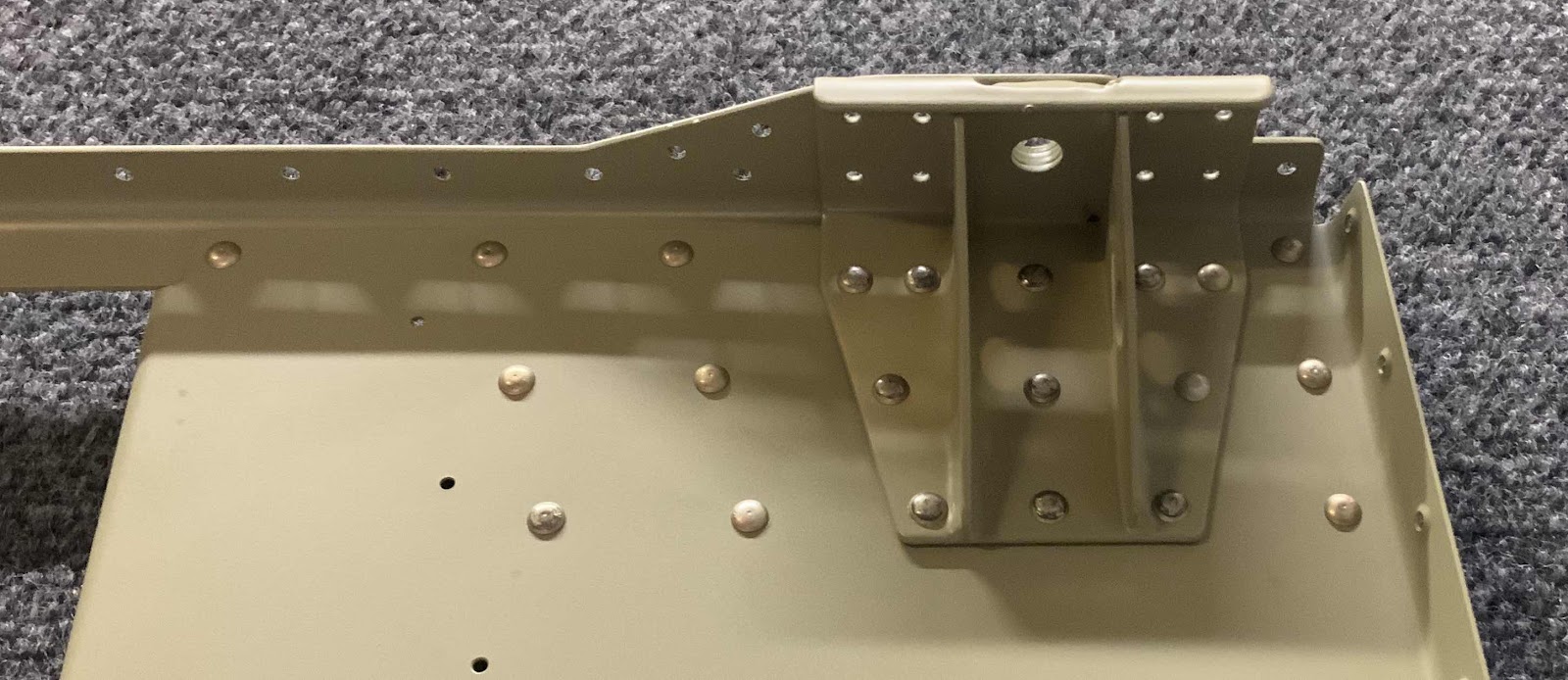

.....a close up look of the shop head side of the rivets.....

.....and a close up look at the manufactured head side of the rivets.

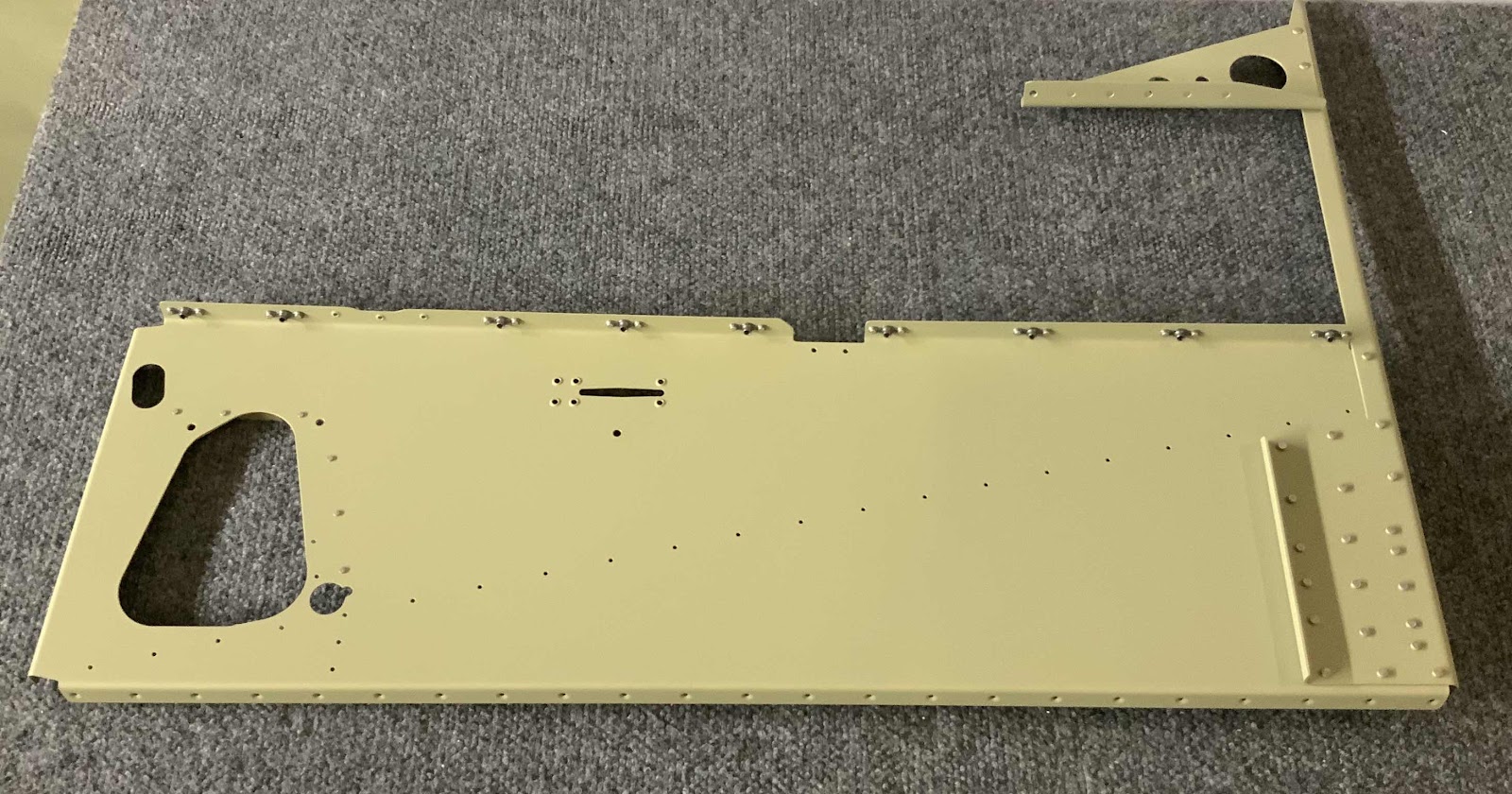

This is the Right Tunnel Side Assembly after the rivets were installed.....

.....a close up look at the shop head side of the rivets.....

.....and a close up look at the manufactured head side of the rivets.

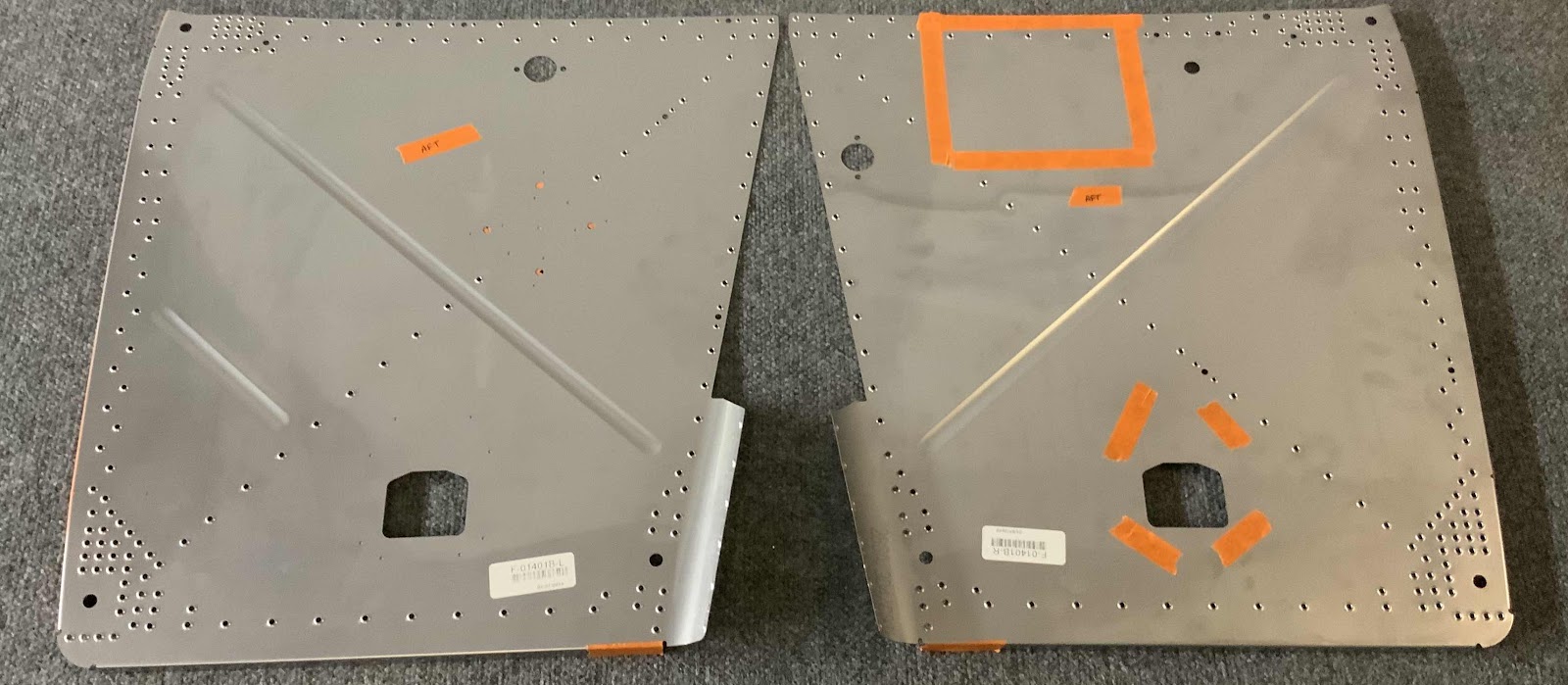

Once the riveting was completed, I continued and completed the dimpling of the #30 and #40 holes in the F-01401B (-L & -R) Firewall Sides. The holes that are covered by the orange tape do not get riveted (right now anyway).
