Finishing, Cowl Baffle (Part 5)

The work and pictures in this post are from September 27, 2021.

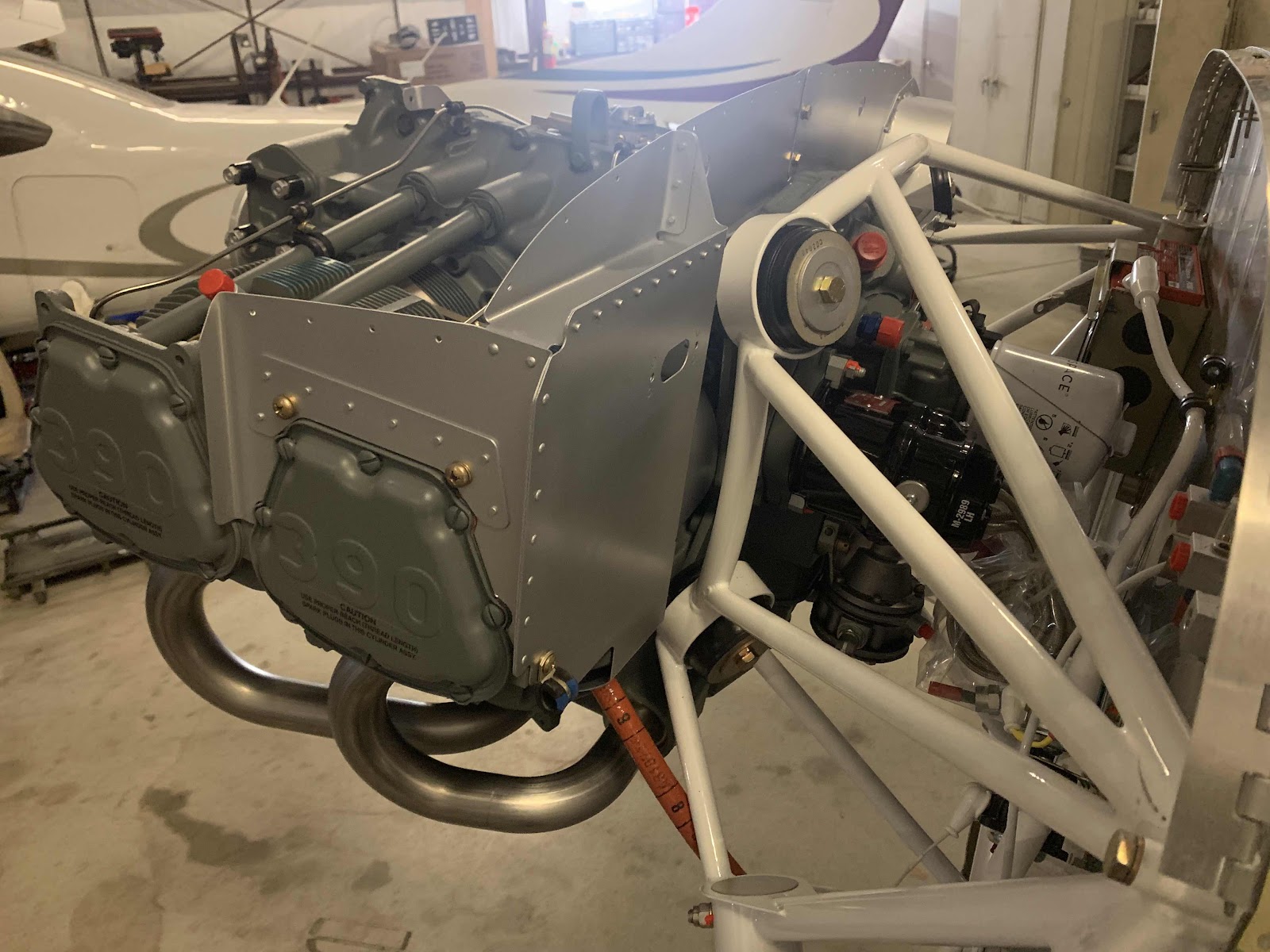

After all the RTV dried, I installed the Left and Right AFT Baffle Assemblies to the engine. Here is a rear view of the Left AFT Assembly…..

…..and the front view. From this view, you can also see the AFT Center Bracket attached to the Baffles (where the right and left overlap) with two AN3 bolts into the nutplates.

This is the rear view of the Right AFT Assembly…..

…..and the front view.

Here is an overall view of both sides. (The picture is kinda blurry).
