Finishing, Cowl Baffle (Part 7)

The work and pictures in this post are from September 30, 2021.

Alright, AGAIN!…..I didn’t take any pictures of this before I riveted it together! However, you will be able to see the assembly pretty well when I install it on the engine in the next post.

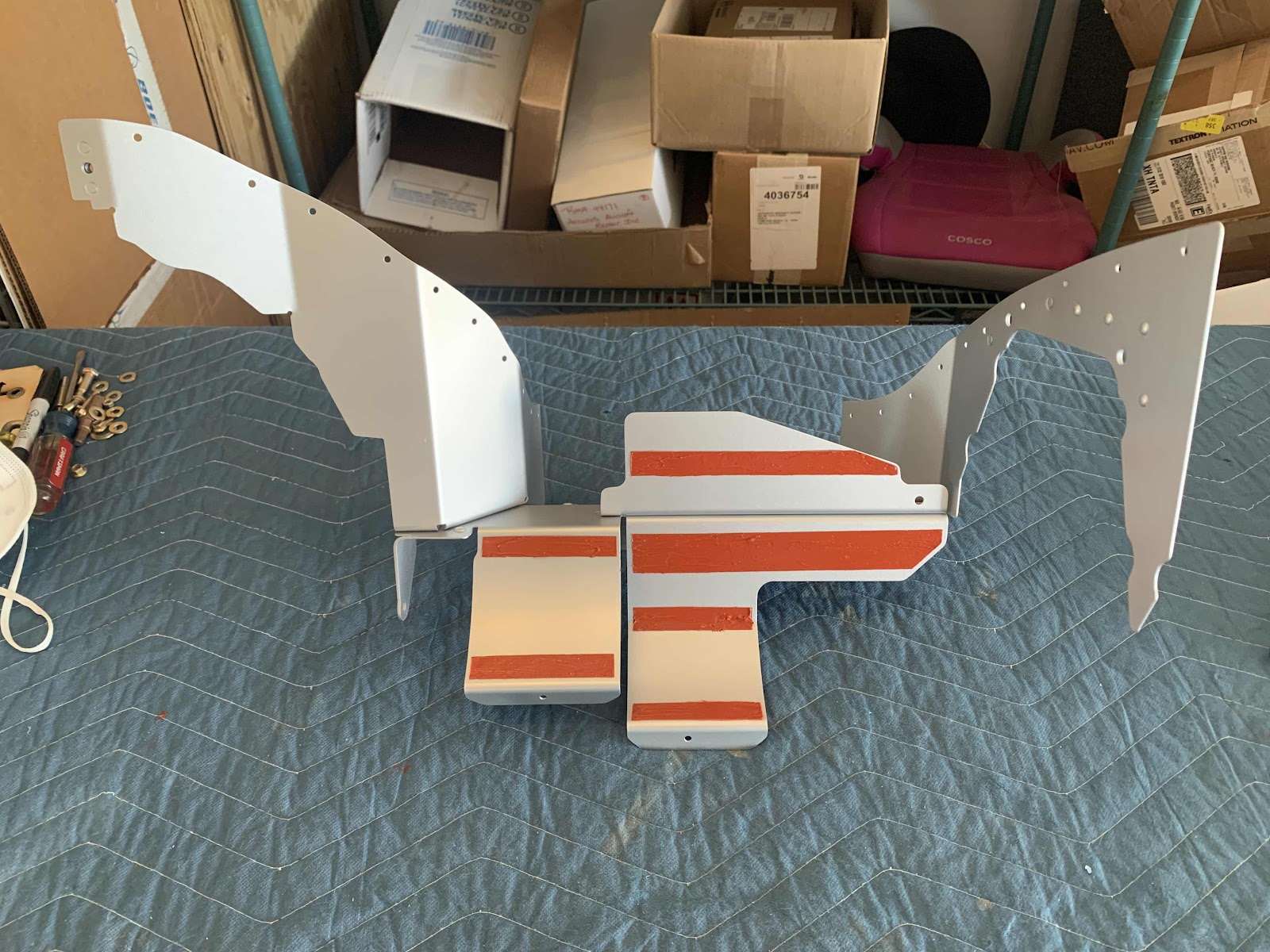

This is the “Right” FWD Assembly and is made up of the CB-00003 Cylinder #1 Baffle, CB-00005 Right FWD Baffle Mount, CB-00007 Right Air Ramp and the CB-00012 Right FWD Baffle. Once it was all together, I applied high temp RTV using the same process as discussed in the previous post.

This is the “Left” FWD Assembly and is made up of the CB-00001 Cylinder #2 Baffle, CB-00008 Left FWD Baffle Mount, CB-00009 Left Air Ramp and the CB-00011 Left FWD Baffle. High temp RTV was also applied to this Assembly.
