Fuselage, Rudder and Brake System (Part 4)

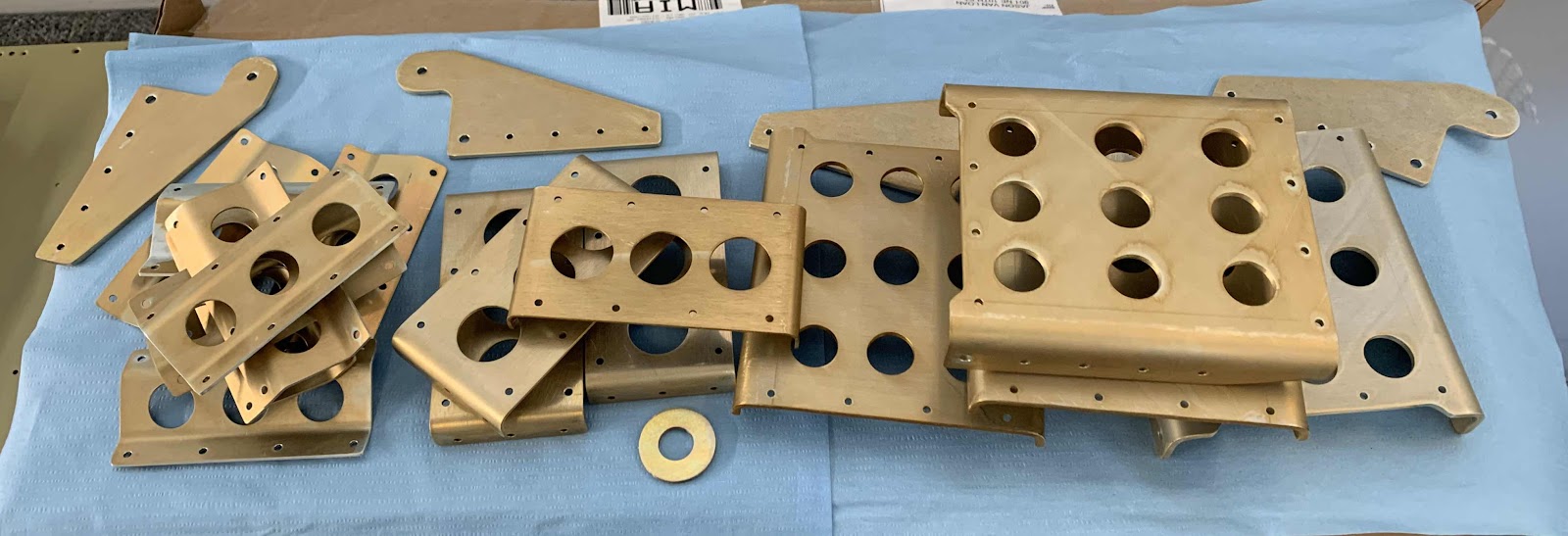

In Part 2, I treated lots of parts with Alumiprep and Alodine.....here are all the parts!

The next four pictures are the parts that make up the four Brake Pedal Assemblies.  After some thought, I decided I was going to Akzo prime all the parts and then paint them gloss white (to match the WD-655-L & -R Rudder Pedals).  Once I rivet the Brake Pedal Assemblies together, I will install wing walk for an anti-slip face.

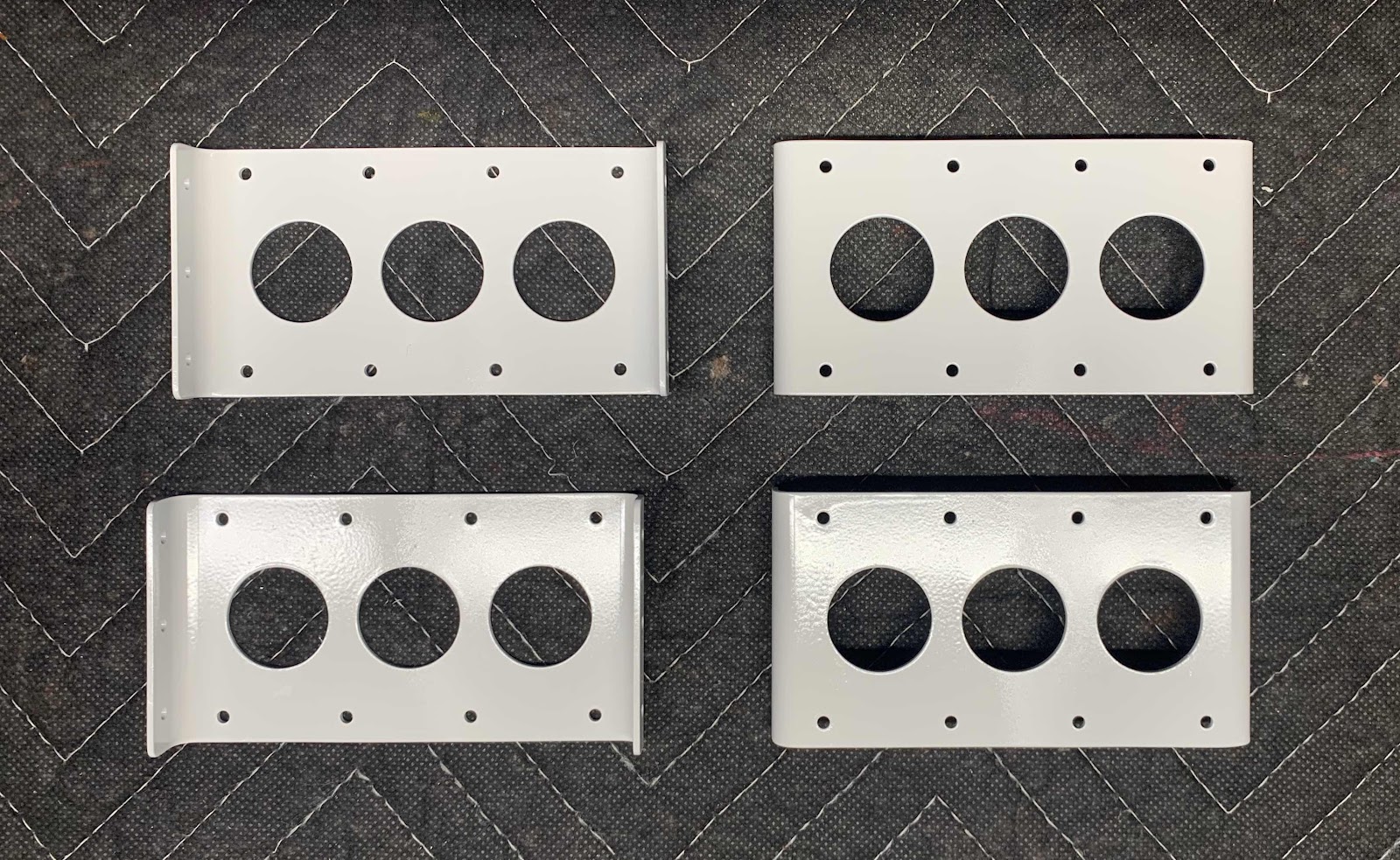

The eight CS-00018C Brake Pedal Z-Channels.....

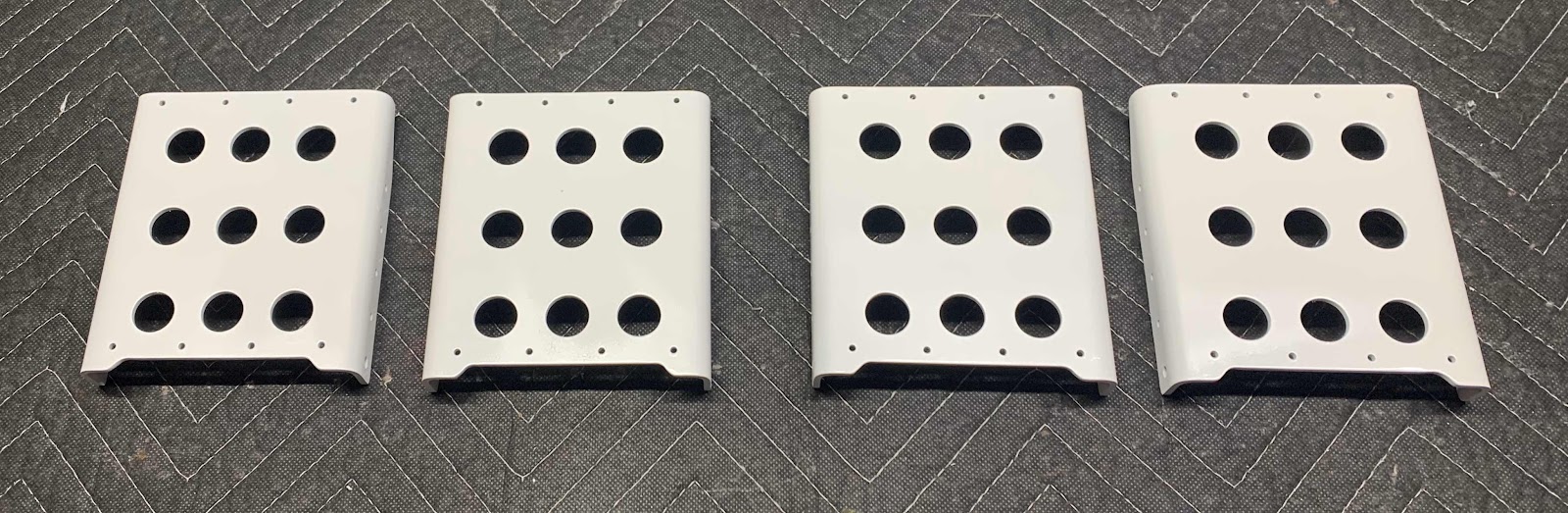

.....the four CS-00018B Brake Pedal C-Channels.....

.....F-1052B Brake Pedal Side Plates.....

.....and the four CS-00018A Brake Pedal Pads (where the black wing walk anti-slip will be installed).
