Fuselage, Baggage Area (Part 4)

After preparing all parts in the previous session, today’s session would be treating them with Alumiprep and Alodine and spraying them with Akzo primer.  Here are all the parts after the Akzo primer has dried.

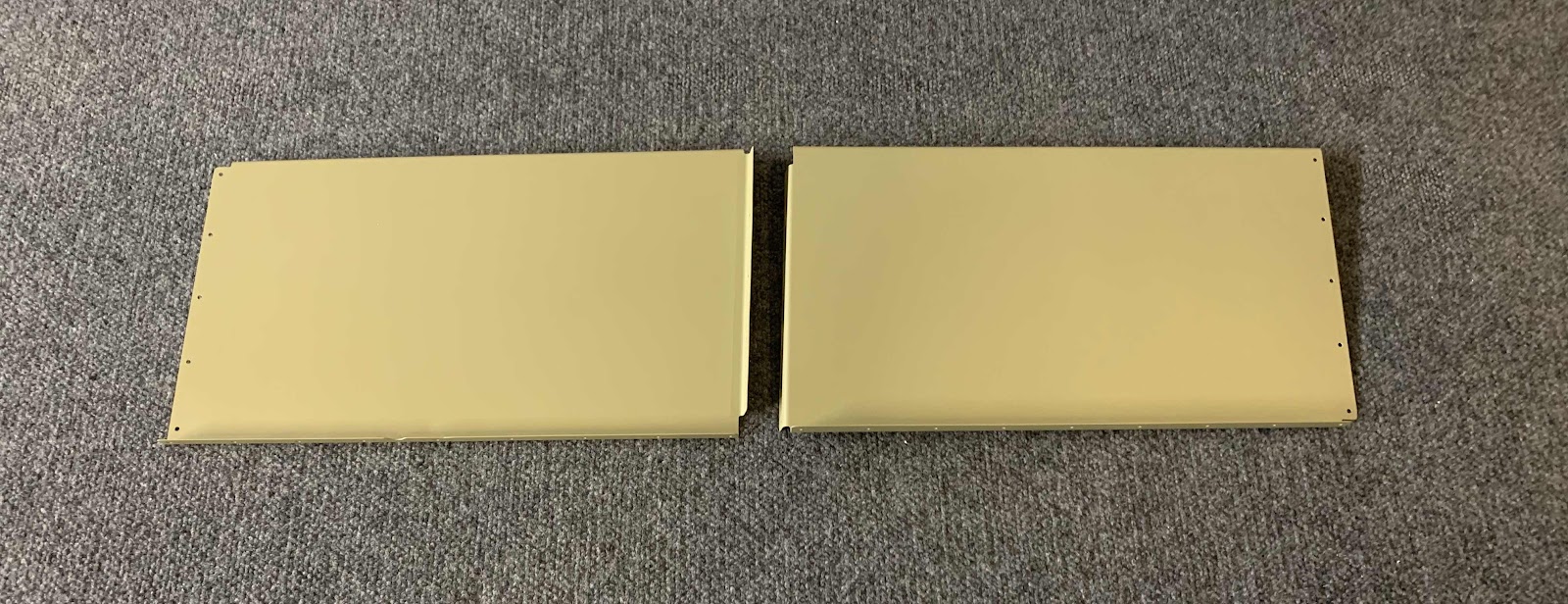

Here are the F-01482-L &-R Aft Baggage Side Covers.....

.....F-01481-L & -R Forward Baggage Side Covers.....

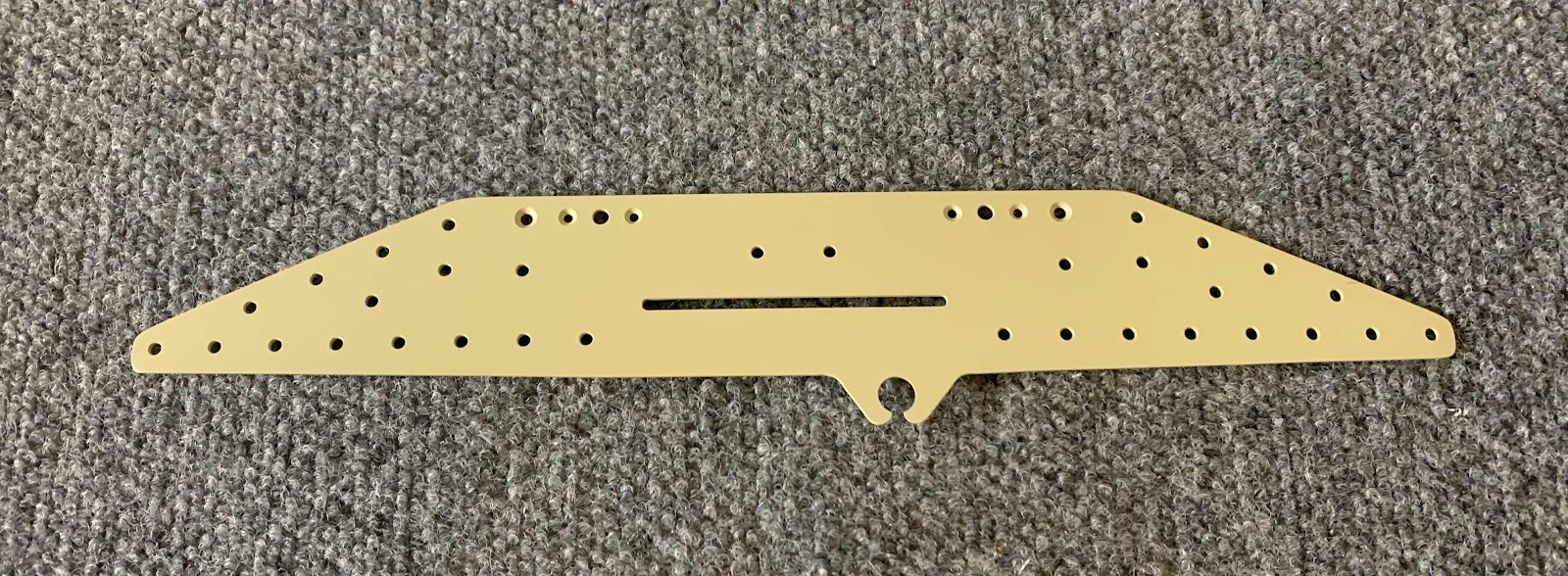

.....F-01466-L & -R Flap Motor Brackets.....

.....F-14141 Baggage Floor Splice.....

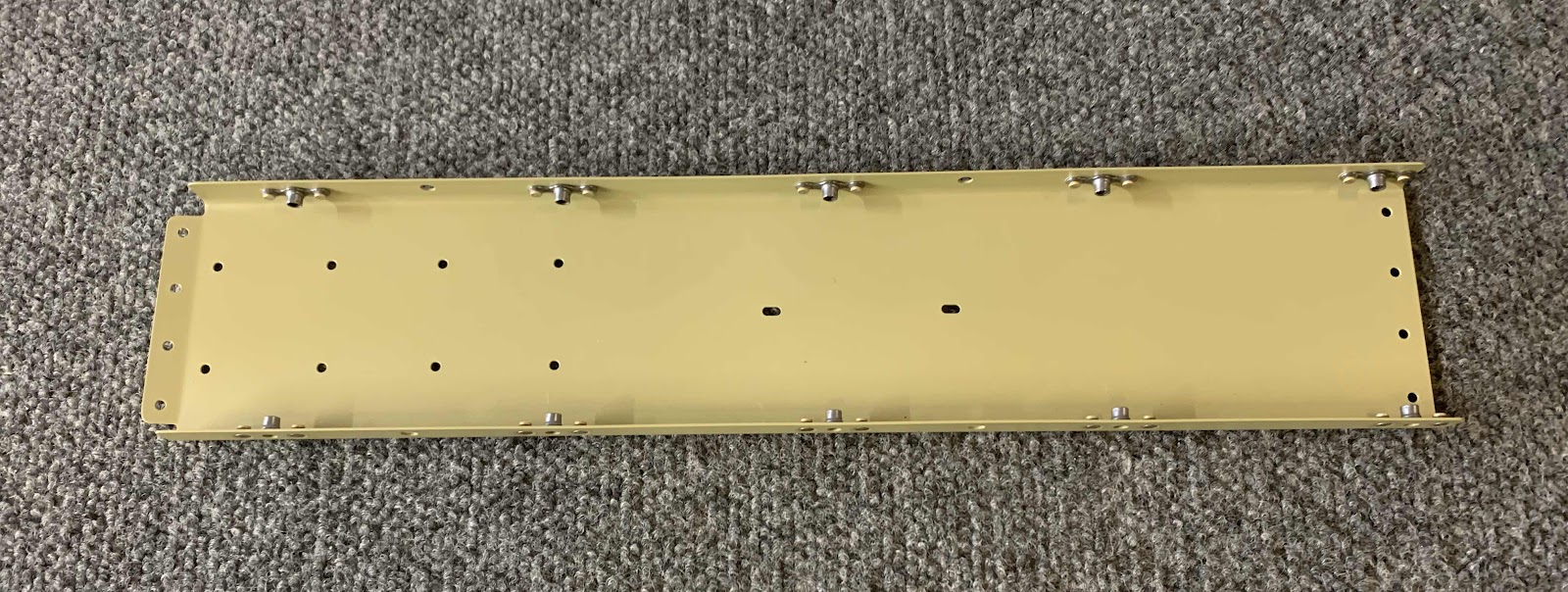

.....F-01405G Flap Motor Channel (with the 10 K1000-08D nutplates installed).....

.....F-01447-R Baggage Floor.....

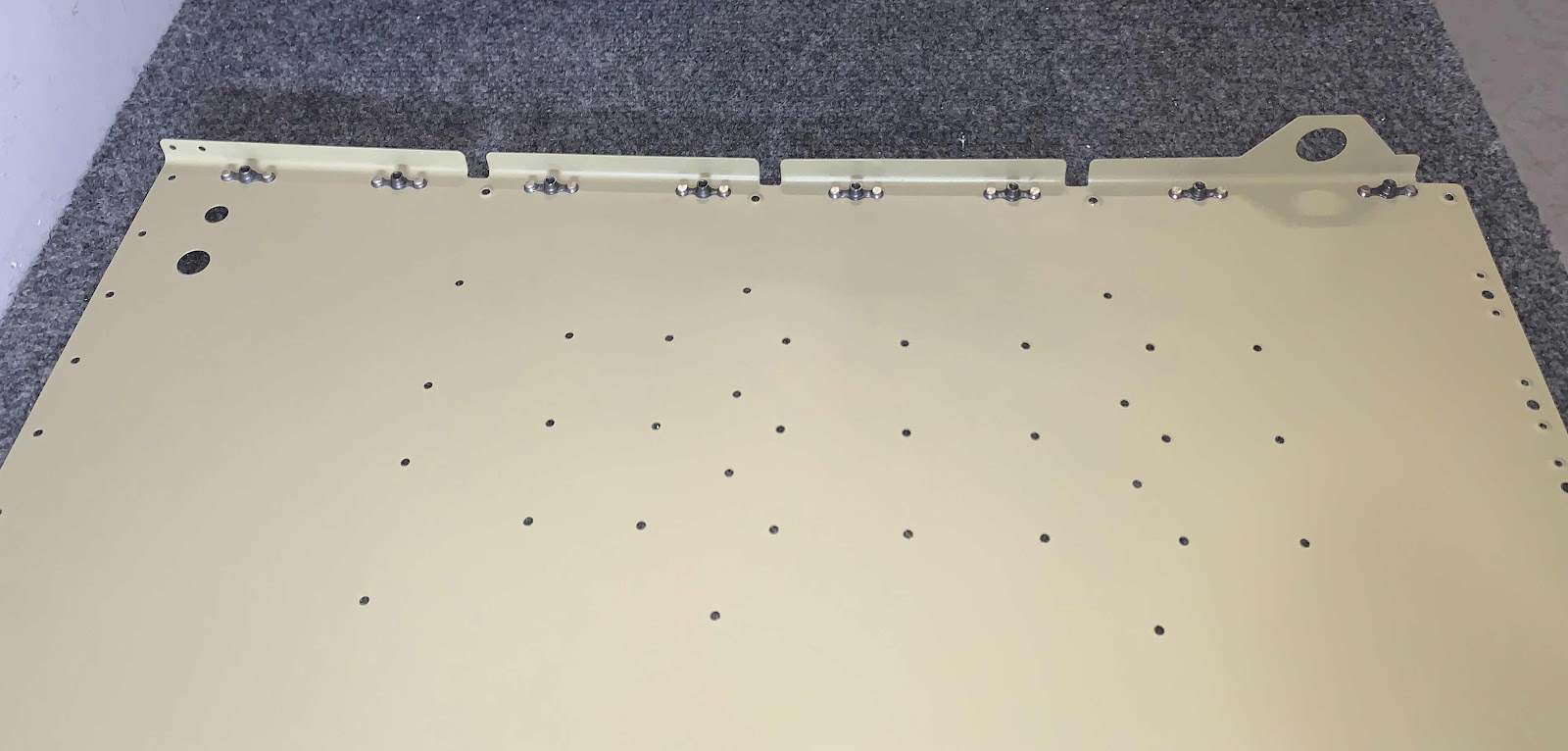

.....the forward edge of the -R Baggage Floor with the eight K-1000-08D nutplates installed.....

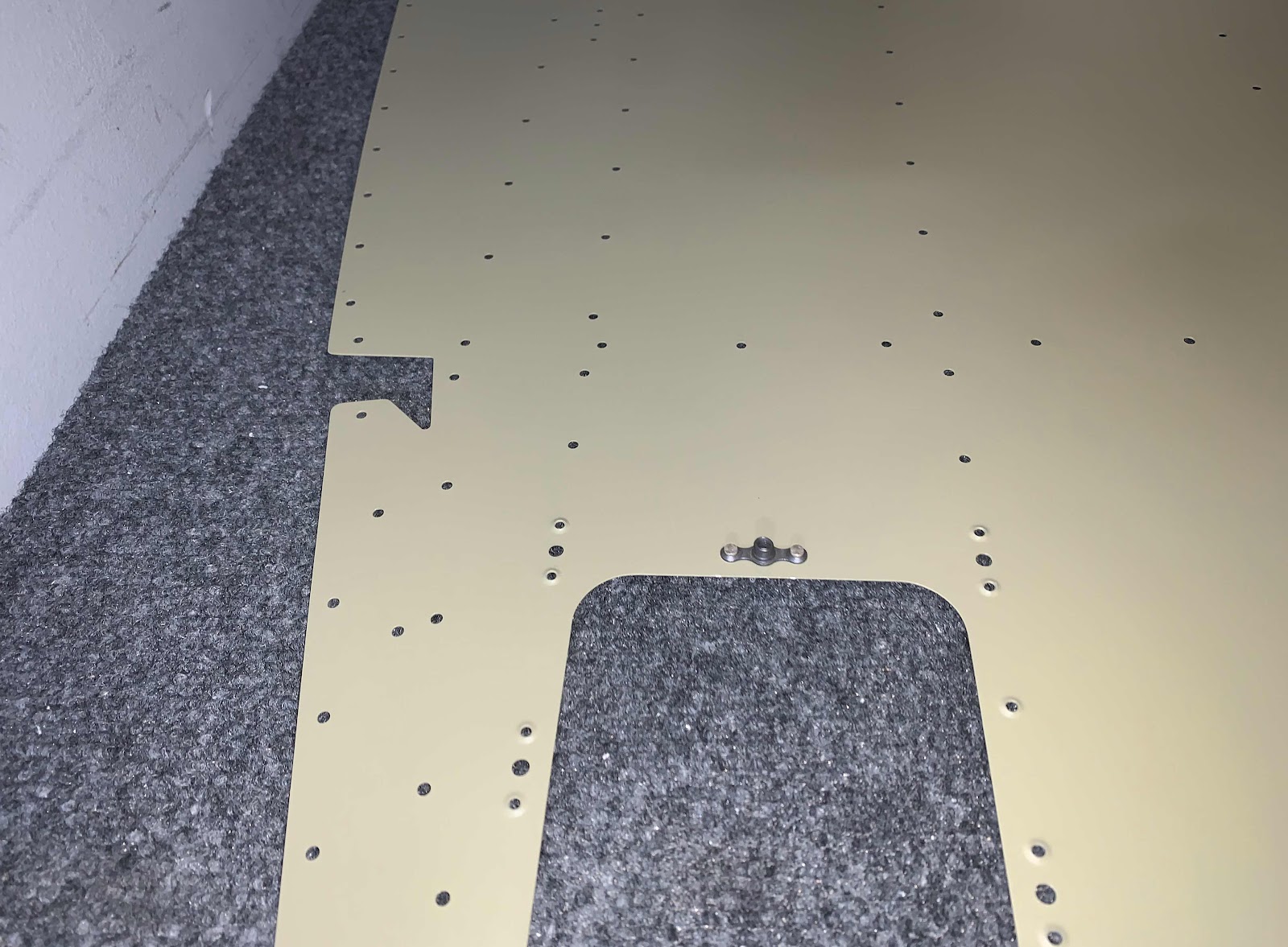

.....the single K1000-08D nutplate installed on the forward edge of the -R Access Hole.....

.....the F-01447-L Baggage Floor.....

.....the forward edge of the -L Baggage Floor with the eight K1000-08D nutplates installed.....

.....and the single K1000-08D nutplate installed on the forward edge of the -L Access Hole.

And there you have it.....all the parts primed with nutplates installed (where required).
