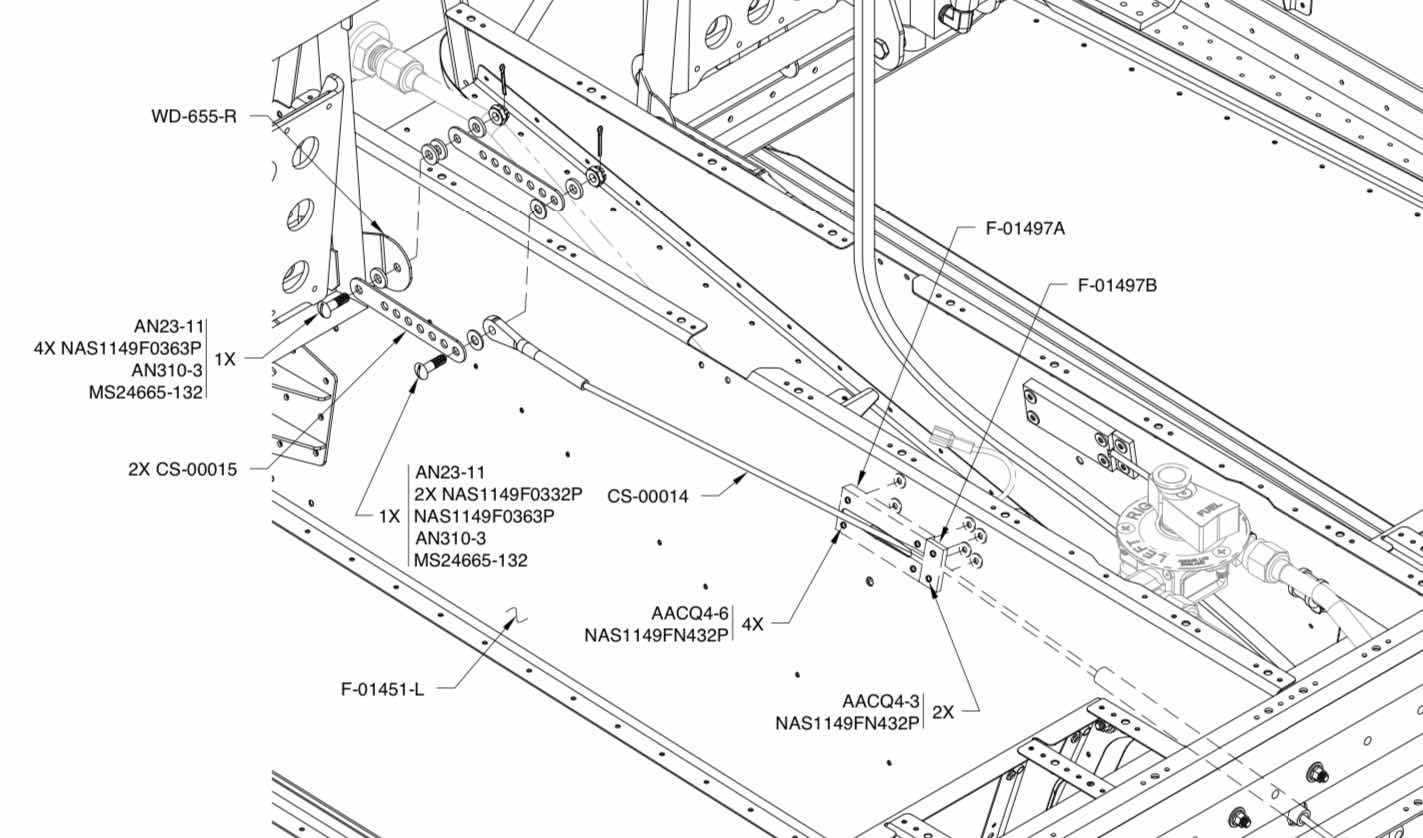

In Part 13, the four Cable Links were Akzo primed and top coated with flat black paint. Now, I will install them on the plane. Here is what the install looks like from the plans and shows the associated hardware.

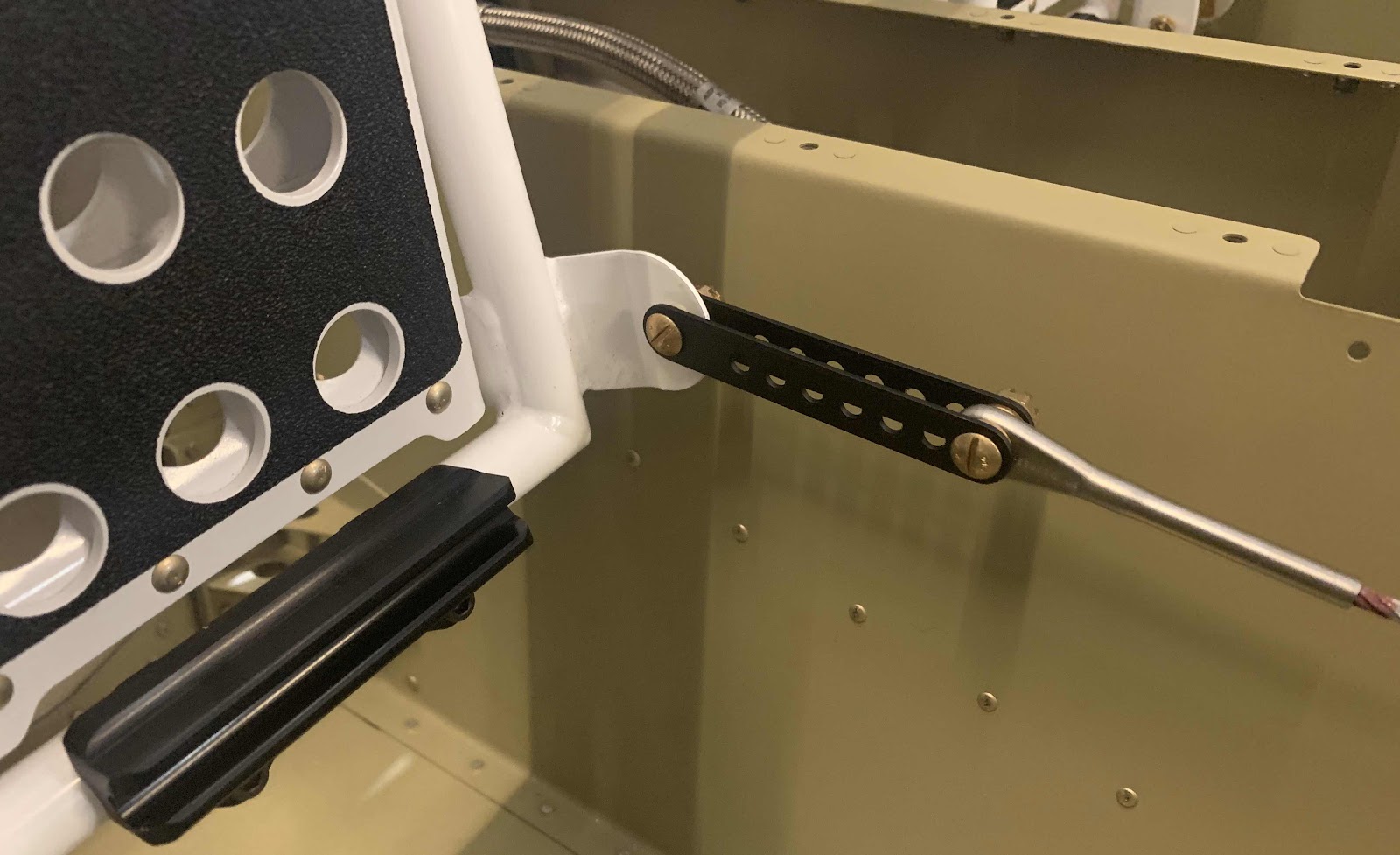

Here is my completed install of the Cable Links on the right (co-pilot) side....
.....and the left (pilot) side.

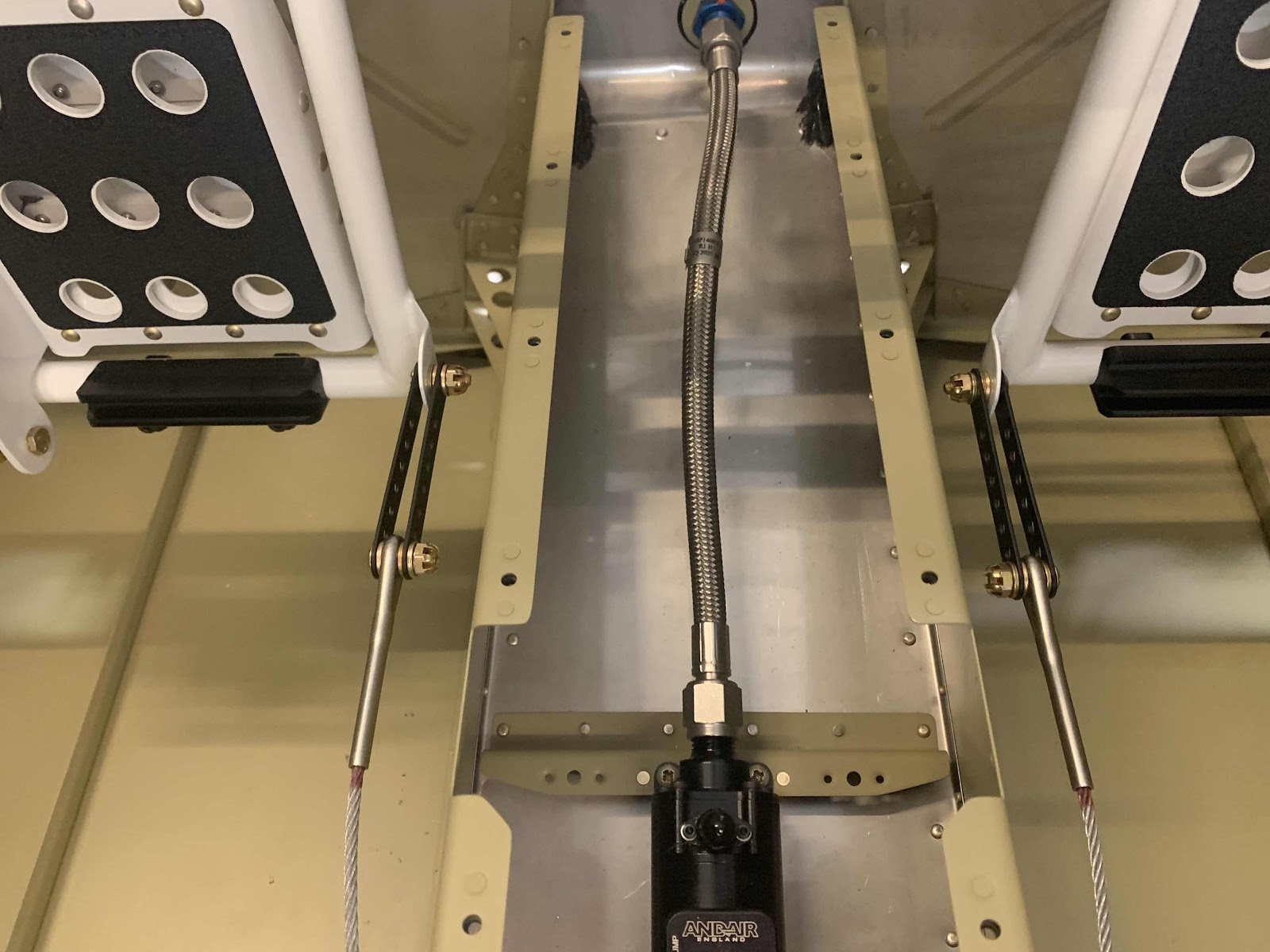

Lastly, here is an overview shot containing both installed Cable Links.
The Rudder Cables are currently connected to the first hole of the Cable Links for reference at this point. I will adjust them in the future (if necessary) when the Rudder Cables are connect to the actual Rudder.
Section Complete
