JVL’s RV-14: Panel Design (Part 3)

This blog was created to memorialize the building process of my Van's Aircraft RV-14 and to satisfy the requirements for certification in the Experimental Amateur Built Aircraft category. It will also serve as a central location for ME to reference in the future on processes and techniques I used during the build. Additionally, it will allow my family, friends, and other interested builders the opportunity to follow along during my build…..and might be helpful to someone along the way.

Saturday, June 12, 2021

Panel Design (Part 3)

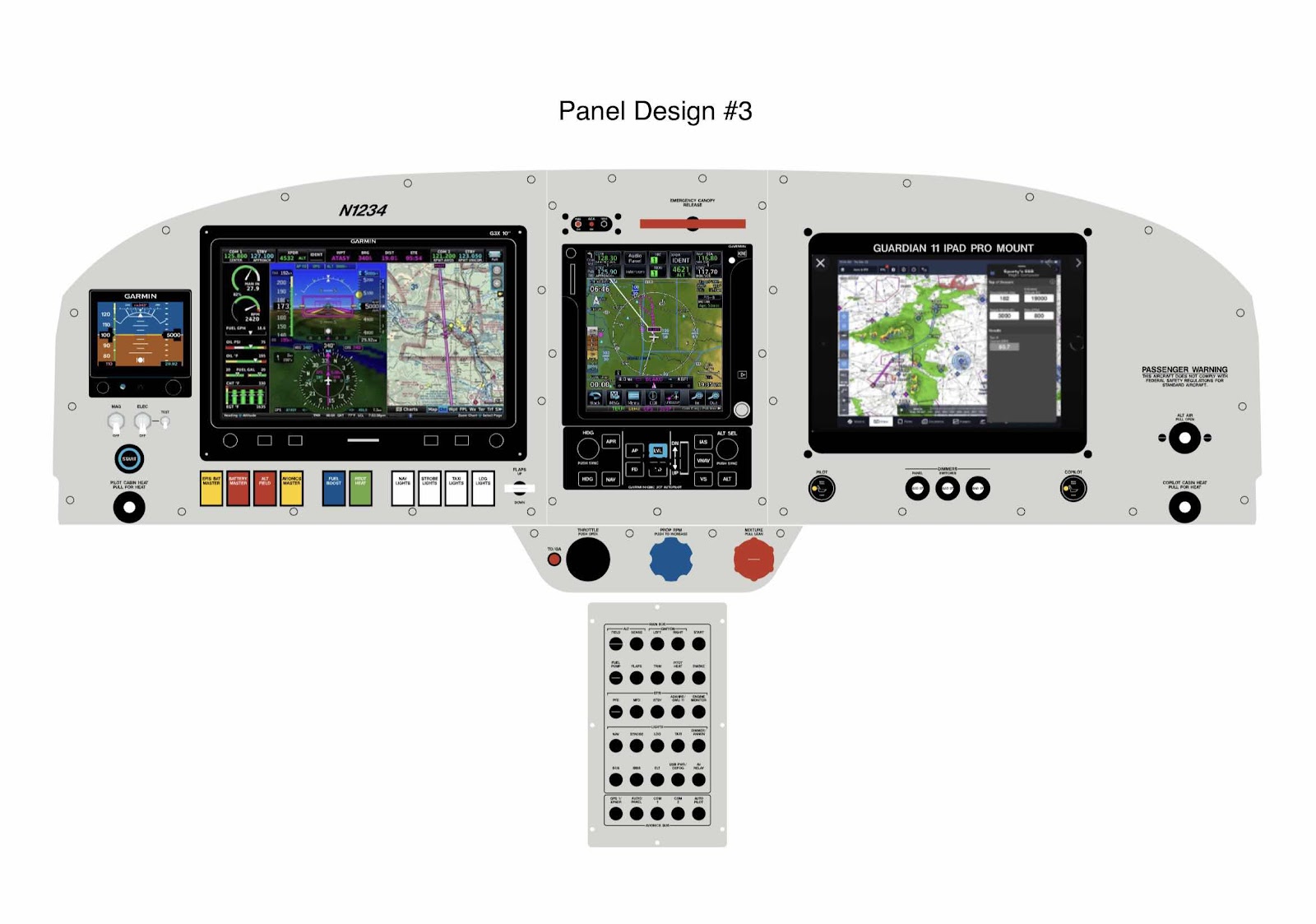

Below is Panel Design #3 from Aerotronics (sent to us on May 27, 2021) with the following changes:

1. The USB was removed from the panel. (We will have a USB between the seats from the stock version from Van’s)

2. “Oil Cooler” knob was removed from the panel

3. “Alternate Air” knob was put where the previous USB port was located

4. The “Passenger Warning” was moved to the right side of the panel

5. The TO/Go Around button was moved next to the throttle on the bottom bracket
