Saturday, June 12, 2021

Finishing, Wing Attachment (Part 1)


This work session was completed June 2, 2021.

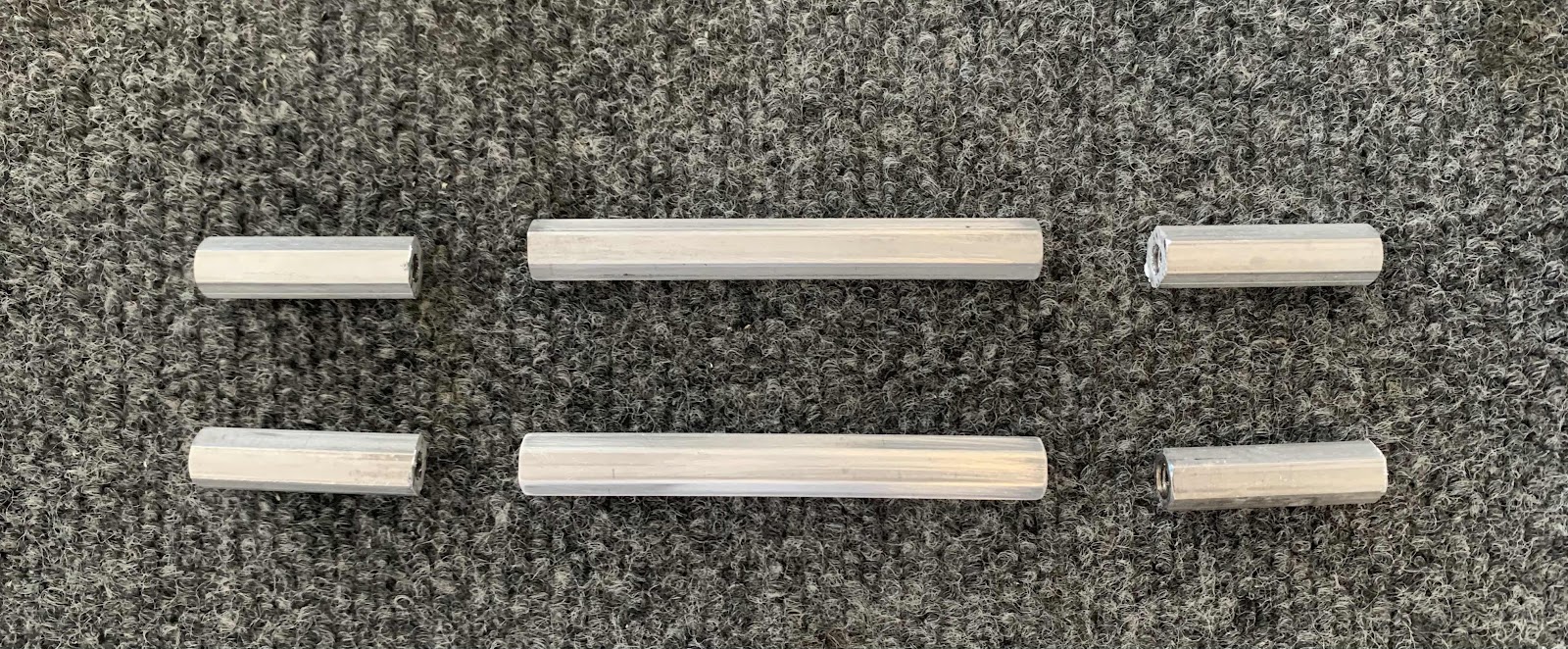

The first step in this section is to fabricate some two Flap Pushrods Assemblies.  To start, the VA-256 Flap Pushrod had to be trimmed to 3 1/2” (88.9 mm).  The center section below is the part that will be used for the actual Pushrod.

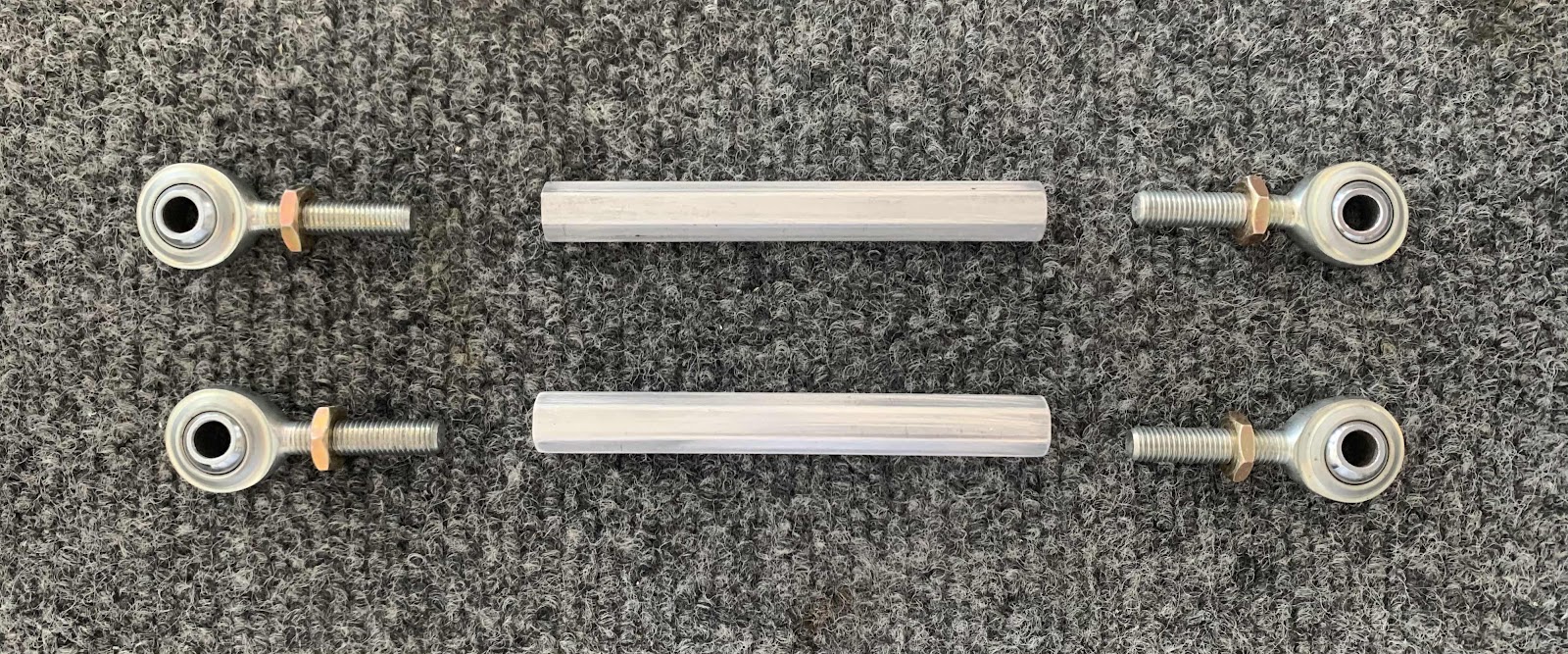

These are the parts that’s will make up the assembly:
VA-256 Flap Pushrod (x2)
CM-4M Rod End Bearings (x2)
AN316-4R Jam Nuts (x4)

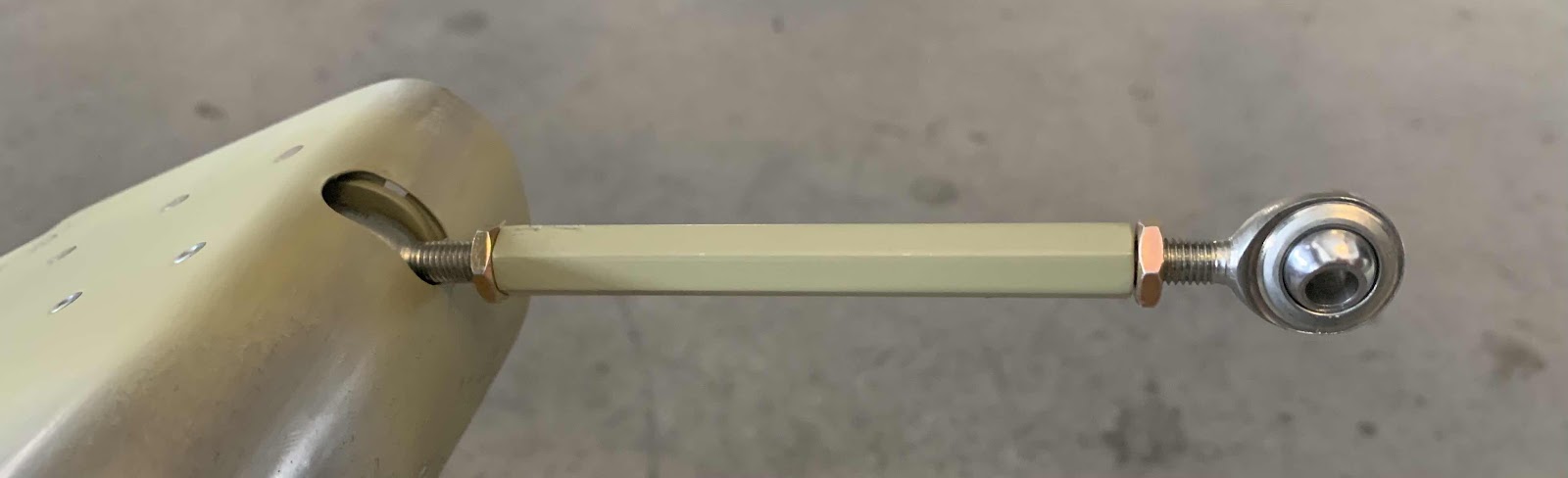

The Pushrods were then treated with Alumiprep, Alodine, sprayed with Akzo primer, assembled and installed on/in the Flaps.  Here is the final product:
