Saturday, June 12, 2021

Panel Design (Part 4)

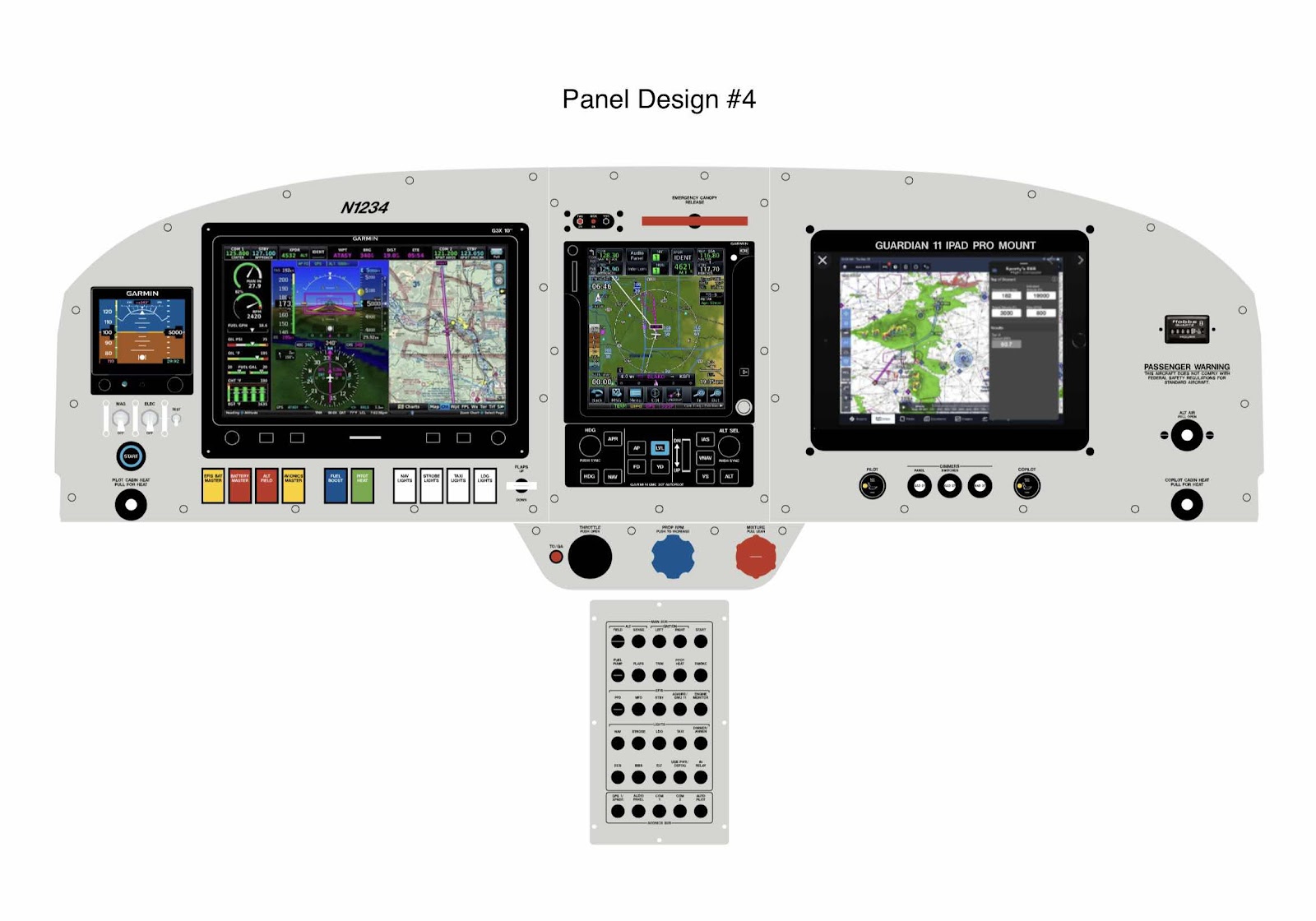

Below is Panel Design #4 from Aerotronics (sent to us on June 2, 2021) with the following changes:

1. An analog HOBBS meter was added to the right side of the panel

2. The Seat Heater switches were moved to either side of the dimmer switches under the iPad mount

3. Three guards were added to the Mag switches on the left side of the panel
